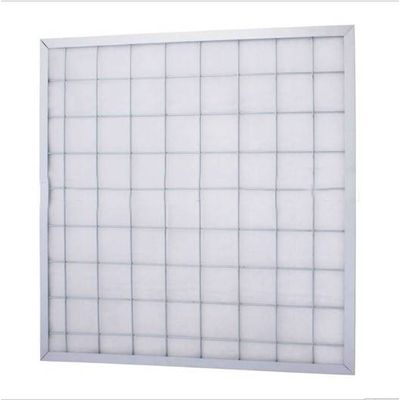

G2-G4 panel pre-filter for air conditioning system

factory price panel air filter

1.light weight design

2.low resistance

3.large dust amount

4.easy to use

1.By the prefilter non-woven spread inside the framework flatly,metak mech fixed the double-side of the media.



2.used to trap 2.0micro meter above the particles,dust and a variety of suspended solids



3.With easy to clean,replace the filter,high strength products,big air volume,low resistance,high dust holding etc.

Media: cotton fiber

Sealant: white emulsion



Frame: aluminum/aluminum plate/galvanized/stainless steel



Efficiency: 40%~90% 2.0micro meter



Max.temperature: 80u00b0C



Max.humidity: 100%



Initial resistance: less than 45pa



Final resistance: 100-250pa



Dimension(W*H*D)mm: 592*592*10/592*287*10/490*490*10/592*592*21/592*287*21/490*490*21



Filter class: G2-G4

1.By environmental constraints and large amount of wind environment can normal use.



2.Application for prefilter of air conditioning systems,pre-filter of the multi-stage fitration system.
