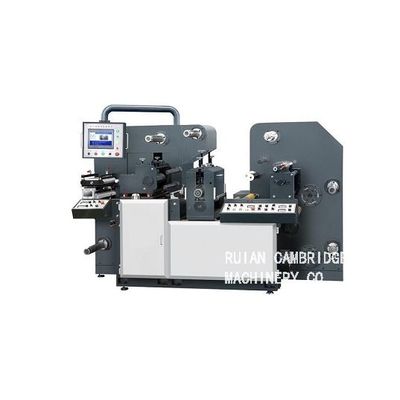

Rotary Sticker Die-cutting Machine

1. Characteristics: This rotary die cutting with slitting machine is a new product, it equipped with Trio (U.K.) motion control system, and register sensor to arrange high accurate rotary die-cutting system. This machine is applicable to pre-printed labels. Unwinder, rotary die-cutting, slitting and rewinding can be finished in one process. It can be run with semi-rotary mode as well as full rotary mode. With semi-rotary time, the machine doesn??/span>t need to change different magnetic cylinders for different labels because it can go backward. Only flexible die is required to be changed. The machine was equiped with USA web guiding to guide the material smoothly. The machine has the characteristics of compact structure, fast speed, high efficiency, easy operation, accurate slitting, steady running etc. 2. Main Technical Parameters: Slitting speed 90m/min Die-cutting speed 70m/min (intermittent) 90m/min (full-rotary) Max web width 320mm Max unwinding diameter 600 mm Max rewinding diameter 600 mm Die cutting length 200mm-450mm (intermittent) 250mm-550mm (full rotary) Overall diameter 3.5m * 1.3m * 1.52m(L * W *H) Machine weight 2500kgs Voltage 380V, 3P Power 12KW 3. Standard configuration: One rotary die cutting station with waste rewinder shaft One Lamination station with waste rewind for over-lamination film with liner One slitting station with dual 3??? rewinder shafts, with magnetic clutches With 1pc 3??? unwinding shaft with tension controller. With meter/number counter. With one register sensor With 8 pcs rotary knife. Machine has blower fan to blow away the trimmed sides. With USA web guiding
