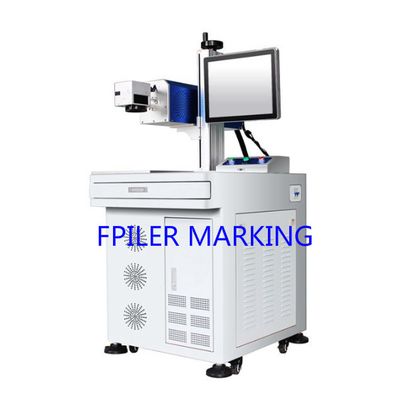

60W CO2 Benchtop Laser Marking Machine FPMQC-60T
Features
1.Laser accessories in advanced configuration, excellent performance
2.Integrated design, easy to move and operate
3.Fast working speed, high accuracy and high efficiency
4.Perfect marking, preventing counterfeit
5.Suitable for all kinds of non-metal materials
Technical Parameters
CO2 Bench Top Laser Marking Machine FPMQC-60T | |
Model | FPMQC-60T |
Power | 60W |
Power Stability | ±5% |
Laser Wave Length | 1050-1070nm |
Max Marking Speed | 10000mm/s |
Laser Beam Quality(m2) | 1.4±2 |
Repeat Accuracy | ±0.0002mm |
Marking Range | 70*70mm 110*110mm 150*150mm |
Power Supply | 220V;50/60HZ |
Power Consumption | 300W |
Whole Machine Dimension(cabinet) | 660mmX800mmX1400mm |
Single Machine Dimension(optical) | 850mmX160mmX200mm |
Total Weight | About 65kg |
Operating System | Windows7,32bit |
Control Interface | Standard USB |
Marking Software | A specially designed laser marking software, powerful, easy to operate. Can print a variety of fonts, vector graphics like PLT, DXF file, serial number, bar code and QR code etc. |
User Interface | Computer |
Application
Markings on various non-metal, such as ceramic, plastics, rubber, leather, paper etc
Electronics industry: such as inductance, printed-circuit board, integrated circuit, instrument and control panel etc.
Daily supplies and clothing industry: such as button, food package, tobacco and alcohol etc.
Metals of surface oxidize or spray painted, such as bamboo slip, glass, electronic component, building model, crystal model, marble etc..
And also can be used to anti fake, promote brand and produce handcraft.
