reactor

The increasing uses of modern power electronic apparatus are producing non-liner current influences and load the network with harmonics pollution. The capacitor forms a resonant with the feeding transformer by a self-resonant frequency between 250Hz to 500Hz,it leads to the following undesirable problems: overloading of capacitor and transformer; interference with metering and control device, computer and electric gear system; voltage distortion; amplification harmonics. These can be avoided by connecting the detuned/filter reactors.

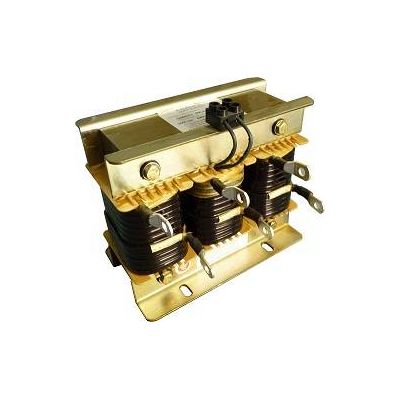

Design:Three phase,iron core,double air gap

Protection class:IP00,indoor mounting

Insulation class:T40/B

Cooling:Natural cooling

Winding material:Copper

Imprignation:Polyester resin,class F or H

Insulation:Winding to core 3 Kv

Temperature monitoring:temperature switch,response temperature 120

Adjustment accuracy:L=+/-3%

Standards:IEC 76,VDE 0550/0532
