Hot selling rotary dryer Saw dust drying machine

Sawdust dryer mainly consists of rotary drum dryer, induced air equipment, high-speed scattered equipment, feed plate,cleaning device, conveying equipment, heat source equipment, electric motor and reducer, supporting device and sealing device, dust-removing equipment, electronic control system and other parts.

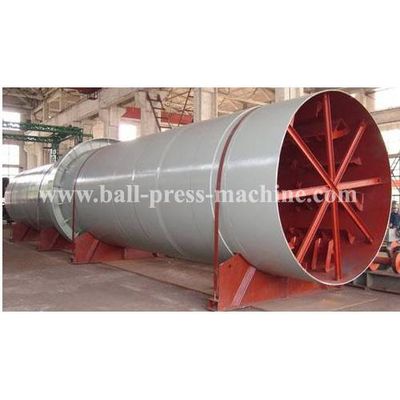

Sawdust dryer cylinder locates on the active wheel which drives the cylinder rotating at low speed by motor and reduction gear. There is the inlet between the pipe of heat equipment and the cylinder of the dryer in which there are stir blades. On the connection of the cylinder and the filter cartridge there is the bezel on which opening a small hole. With one end connected with the cylinder and the other end connected with the material duct, the filter cartridge has stoppers within it and slag hole at the bottom of it. One end of the cooling tube is connected with the material duct by a blower and the other is connected with the discharge port.

1.Sawdust dryer equipment with bio fuels stove, has a high environmental protection effect.

2.The effect of drying is very good.

3.The sawdust dryer equipped with fireproofing, the production is very safe and health.

4.Has a high output and low cost with the reasonable design.

5.Large handling capacity, high thermal efficiency. The thermal efficiency can reach 60%.

6.Sawdust dryer moth-proofing, and it prevent mildew, has a long shelf life.

7.Sawdust dryer have a high degree of automation, and it is easy to operate, and it also can save manpower.

Technical Parameters

Model: FYD-1.2*10

Capacity: 4-6t/h

Power: 7.5kw

Rotation Speed: 4.8r/min

Reducer Model: ZL 50-16-I

Weight: 13.5t

Theu00a0sawdust dryeru00a0is widely used for drying the chalk slags, coal powder, slags, clay and other materials in the building materials, metallurgy, chemical industry, cement industry. The wood chip rotary dryer has a better adaptability and can dry various materials with a simple and reliable operation. Theu00a0sawdust dryer is mainly composed by the revolving body, lifting plate, driving device, supporting device, sealing ring and other components. So it has the advantages of reasonable structure, perfect in workmanship, high yield, low energy consumption, convenient to operate.
