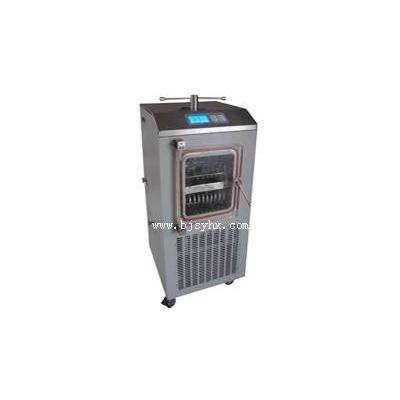

Vacuum Freeze Dryer (LGJ-10F)

This series of dryers have electric heating shelf. Freezing and drying process are finished in the same place. It changes traditional complicated operation and prevents the product from pollution.

With electric heating shelf and PID control standard, with programmable function;

16 programs ca be stored, each program can be set up 32 segments;

Freeze and drying process are completed in the same place;

With organic glass observation window, the whole process is easy to see;

LCD display, English interface, display and record drying curves;

Internal surface of rectangular chamber and product tray are constructed of stainless steel;

Stopper by hand is available, vacuum sealing for vials can be completed;

RS232 interface is optional, computer connected to display freeze-drying curve;

Air-let-in valve with nitrogen is optional;

Eutectic point test device is optional;

Model---LGJ-10F (stopper type)

Drying area---0.1 M2

shelf---1 layer

Shelf spacing---70 mm

Shelf size---265x400x25 mm

Condenser temperature---Min.-80 centigrade

Shelf temperature----60~+65 centigrade

Bulk capacity---1 Liter

Vacuum degree---10 Pa

Condenser capacity---1.5 Liter/24 hours

Electricity Power---220v ,50 Hz

Cooling---Air,draughty, ambient temperature 25 centigrade

Vial capacity--- dia. 12mm,650 Pcs

Vial capacity--- dia. 16mm,384 Pcs

Vial capacity--- dia. 22mm,185 Pcs

Style of press---By hand

Dimension---820x650x1550mm

LGJ-10F Freeze Dryer is suitable for freeze drying experiment in laboratory or pilot scale .
