U.V Spot and Overall Coating Machine

Name: U.V Spot and Overall Coating Machine

Sort: U.V and OPP Laminator

Sort ID: 104

Click: 1301 Times



Basic Introduction

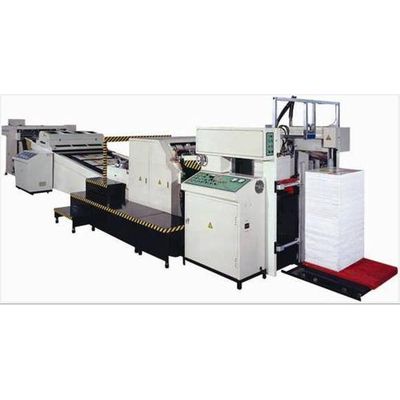

High Speed U.V Spot and overall coating machine researched and developed by adopts upper

swing gripper for passing sheet to achieve high speed up to 6600 sheets per hour. Teflon belt

U.V curing system has the characteristics of high speed, high registration accuracy, high U.V

curing efficiency, low power consumption.







Specification:



Model

104



Maximum Sheet Size (Lu00d7W)

730u00d71040mm



Minimum Sheet Size (Lu00d7W)

310u00d7406mm



Maximum Coating Area(Lu00d7W)

720u00d71030mm



Coating Registration Precision

u00b10.15mm



Sheet Thickness

100~450gsm



Maximum Coating Speed

UP to 6600 sheets/hour



Total Power

73.12Kw(Water Base)/49Kw(Solvent Base)



Machine Dimension (Lu00d7Wu00d7H)

9756u00d72300u00d72010mm



Weight

8000KGS



Standard equipments



1. Automatic Stream feeder



*Reliable Sucker feed sheet smoothly at high speed.

*Sensitive mechanical and electronical double sheets detector and stop board for foreign objects.The machine will stop immediately if any abnormality occurs.

*Precise and reliable front and side guide.



2.Main Coating Unit

*Coating speed can reach 5000 sheets pre hour.

*Big diameter impression cylinder tested by dynamic balance experiment to guarantee varnish coating

*layer flat. Or adopting double roller inking system with doctor blade, to controlink supplying amount.

*Blanket Cylinder uses shaft curling way of clamping blanket and photopolymer plate.

*Multi-rollers varnish transmission device and easy clamp blanket and photopolymerplate. Easy and convenient adjustment for varnish thickness.

*Ceramic anilox roller and doctor chamber or original doctor blade system can be available at option.



3.UV curing system

*Three U.V lights can harden the U.V varnish immediately.

*Unique inclined built in U.V light box.

*Half/Whole light conversion.

*Auto temperature controlinside, electronic abnormality switch off.

*I.R dryer can be available at option to dry water base varnish.



4.Automatic Delivery Unit

*With automatic loading sheet board.

*Mechanical and electrical double sides trimmer and strong sheet flattening and balancing mechanism can avoid the inertial running stroke from the thick sheets to guarantee deliver sheet smoothly and neatly.

*With cooling fan and cooling air conditioner can be available at option.

*Emergency indicating light and safe detecting system can show the abnormity to the operators.



5.Auto control

*Safe and reliable motors use invertors to adjust speed.

*PLC control of whole machine for easy operation and maintenance.

*Lines link with quick plug and jointer for easy installation and maintenance.
