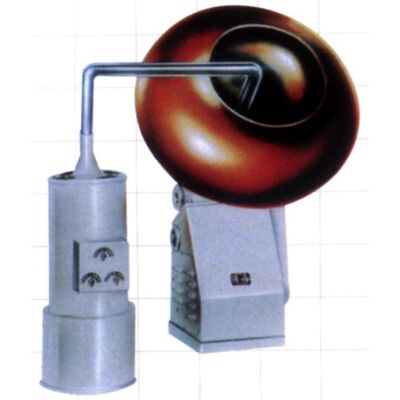

BY600-800 Sugarcoating Machine

These machines sugarcoat the tablets and pills for pharmaceutical and food industries. It is also used for rolling and heating beans and edible nuts or seeds.

As its feature, the sugarcoating round pot is elevated with a elevation 30u00b0 to the horizontal, the heater such as gas or electrical heater can placed directly under the pot. A separated blower with electric heater is provided with the machine. The pipe of the blower stretches into the pot for heating or cooling purpose. The thermal capacity can be selected in two levels.

Main Technical Specifications:

ItemBY600BY800BY1000

Production capacity (kg/time)30~6050~10070~100

Dia. of sugar coating dish (mm)6008001000

Rotation speed of sugar coating dish (r/min)According to customersu2019 requirements

Adjustable angle of coating dish 15o~95o

Main motor(kw)0.55 1.11.1 2.21.5 2.2

Electric heating power10001000*21000*2

Make the sugarcoating tablet roll and slide in the pan through the pan rotary clockwise. And then scrub and mill the sugarcoating tablet to make the core smear is even. At the same time put into the hot wind to eliminate the water in the surface of tablet, and then get the qualified sugarcoating tablet.

The variable adjusting speed Coating Pan can be done by customeru2019s requirements.
