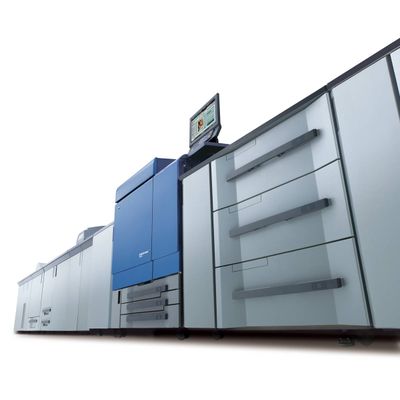

Konica Bizhub C8000

The bizhub PRESS C8000 is a high-speed color digital press that offers high-quality prints to rival costly offset printing. Print up to 4,800 pages per hour without the need for special training or complex setup. Plus, the C8000 color digital press is reliable and energy efficient.



80 ppm output for fast, reliable, high-quality color production printing



Monthly duty cycle of 500,000-pages



3rd-generation Simitriu00ae HD + toner for superior color images



Offset-quality color at 1,200 dpi with less setup time and supervision



10,760 sheet maximum paper capacity with vacuum belt feeding

80 ppm color output:

up to 4800 full-color pages per hour, with

500,000-impression monthly duty cycle to handle the heaviest production demands.



15-inch color LCD touch-panel display:

can be placed anywhere on the unit for on-board document preview/review, making post-RIP editing and document file management quick and simple.



3rd-Generation Simitri HD+ Toner:

for smaller, more uniform toner particles for spectacular color imaging with superior fine detail.



Productive dual fusing:

a system for offset-quality images without time- consuming and revenue-squeezing offset press labor and setup.



New hybrid de-curling:

with an advanced series of decurl rollers and humidification to condition the most challenging paper stock for smooth-running throughput.



1,200 dpi resolution:

for smooth images, with enhanced outline processing for more legible text even against color backgrounds.



Image Density Control (IDC) sensor:

for real-time density adjustments; accurate color density control with new density balance adjustment mode.



Additional productivity options:

include large-capacity stacker unit, stacker cart, post-inserter.



Auto duplexing:

with paper in weights up to 300 gsm, to produce dual-side prints and copies at blazing engine speed.



10,760-sheet maximum paper capacity:

among the highest in its class. Vacuum belt feeding mechanism for handling long press runs with less operator assistance.

GENERAL SPECIFICATIONS







Type Console Type

Print / Copy Process 8 Beam Laser System with Quad OPC Drum Tandem Electrostatic Process

Development System Dry Dual Component Magnetic Brush Development



Print Speed / Monthly Duty Cycle80ppm (Color and B&W) / 500,000 pages

Resolution / Gradation1200 x 1200 dpi / 256, 8-bit CMYK

Standard / Optional Memory 512MB x 6 Standard- 160GB x 6 Optional

Warm-up TimeApprox. 6.5 minutes

Copy Quantity 1-9,999 ( Countdown, Interrupt Capability) Magnification Zoom Range: 25%-400%

Original SizeReversing Duplexing Document Feeder: up to 11" x 17" Maximum/ 100 Sheets / Mixed Original Detection (PF-705 only) Paper Size / Paper Weight All trays: up to 13" x 19.2" maximum / up to 300 gsm; PF-704 and PF-705: up to 350 gsm

Standard / Optional Paper Supply 500-Sheet Universal Paper Drawers x 3- 4,630-Sheet Paper Feed Unit x 2 (PF-704/PF-705) Maximum Paper Capacity10,760 Sheets Maximum

Power Requirements (Engine)208V-240V, 60Hz, 24 AMP Dedicated Line

Dimensions (W x D x H) / Weight35.4" x 37.4" x 52" (Engine only) / 990 lbs. (Engine only)

Available Functions Auto Zoom, Auto Paper Select, Auto Low Power, Auto Reset, Auto Shut Off, Color Mode, Combine Originals, Copy Density, Cover Sheet Feeding, Custom Size Paper Setting, Folding, Frame Center Erase, Image Centering, Image Repeat, Interrupt Copying, Job List, Manual Shutoff, Mode Memory, Non Image Area Erase, Page Margin, Power Save, Proof Copy, Remote Monitor, Reserve Job, Rotation, Separate Scan Mode, Simplex / Duplex, Stamp,

Staple, Tab Paper, Trimming, Weekly Timer, Z-Folded Original Setting, Zoom

- Available Options FS-612 Booklet Finisher, PK-512 Punch Kit (for FS-612), PI-502 Post Inserter (for FS-612), FD-503 Multi-Folding Unit (post-insert and punch ability), SD-506 Saddle-Stitch Unit,

LC-501 Rollaway Cart (for LS-505), LS-505 Large Capacity Stacker, FS-521 100-sheet Staple Finisher, PB-503 Perfect Binder Unit, RU-508 Relay Unit, HM-101 Decurling Humidifier Unit, GP-501 GBC Mulit-Hole Punch Unit (6 available Die Sets: DS-501 3-hole Punch Die, DS-502 19-hole Cerlox Punch Die, DS-503 32-hole Wirebind Punch Die,

DS-504 21-hole Wirebind Punch Die, DS-505 44-hole Color Coil Punch Die, DS-506 11-hole Velobind Punch Die), RU-506 Relay Unit (for GP-501), PF-704 Paper Feed Unit

(2 Trays: 1,390 Sheets / 1 Tray: 1,850 Sheets), PF-705 Paper Feed Unit w/ ADF (2 Trays: 1,390 Sheets / 1 Tray: 1,850 Sheets), EF-101 2nd Fusing Unit, HD-514 HDD Unit (for PF-705/IC-601), HT-506 Dehumidifier Heater (for PFU), PH-101 Preview Kit

- IC-306 EXTERNAL FIERY IMAGE CONTROLLER (OPTIONAL)

Operating System / Processor / Memory Windows XP Pro FES / Intelu00ae Core™ 2 Quad Q9400 2.66 GHz Processors / 2GB RAM

Hard Disk Drive / DVD Drive 160GB HDD / Internal DVD-RW Drive

Software Fiery System 9

Networking Connectivity Simultaneous Auto Switching Protocols, EtherTalk II, TCP/IP, Novell IPX iPrint, LDAP Support (Exchange, Novell, Domino, LDAPv3/RFC2251, Email Address Access and Authentication) User Password Validation, Certificate Management (SSL/TLS, X509 Standard), IP Sec Support, IPv6 Support

File Format Support Adobeu00ae Postscriptu00ae Level 1, 2, 3, Adobe PDF 1.5 to 1.7 (Adobe Acrobatu00ae 6 to 9), PDF/X-1a, 3 and 4, Encapsulated PostScript (EPS), MS Office (DOC, XLS, PPT, PUB (via Hot Folders)

- Optional File Format Support JPEG, DCS 2.0, CT/LW, 1-bit TIFF, TIFF, TIFF/IT, PDF2Go

SNMP Printing Support AppleTalk, Bonjour, SMB (peer-to-peer), LPD

Performance Features Fiery Smart RIP, RIP-While-Print, RIP 1-While-Print 2, Fiery RIPChips™, EFI Video Interface Card, ECT Compression (for flexible compression ratios and visually lossless image quality) Fiery Utilities Fiery Driver, Fiery Command WorkStation 5, Fiery WebTools™, Fiery Hot Folders

- Fiery Options Fiery SeeQuence Suite, Fiery SeeQuence Impose, Fiery SeeQuence Compose, Fiery Graphic Arts Package (Premium Edition), Fiery Graphic Arts Package, ES-1000 Spectrophotometer, Fiery Color Profiler Suite, Removable Hard Disk Drive, Fie
