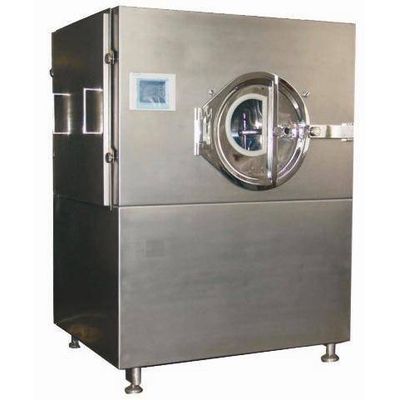

Film Coating Machine

Detailed Product Description



The machine is applied for organic film, water soluble film and sugar film coating. Put the tablet(pellet) into the coating roller, the tablets unceasingly makes complicated tracing movements in the clean and hermetic rotating coating roller. In the movements, with the craftwork flow and reasonable craftwork parameters, coating medium is automatically sprinkled, at the same tine, hot air is supplied under a negative pressure, which is vented out through the chip layer from the bottom of the coating medium sprinkled on the chip surface gets dried promptly and equally with forming a solid and sleek surface film.







Features:



1 1. Digital Display, everything is in digital control.







2. Streamline Design







3.The Peristaltic pump



With the constant variable precludes return pope. The return radius of the roller varies any time when pressure changes, output and pulp spraying quantity automatically balance, which stabilize the atomization effect, simplify the atomization system, prevent spray gun clogging and save dressing, whatu2019s more, it is simple to clean and without any dead angle.



4. The spray gun especially designed and manufactured for the coating machine is in that the atomization is equal, the spraying is large and the universal adjustable nozzle is independent from loading volume; timely cleaning to the gun clogging may make the coating continually go on, dwindle coating time and save the coating dressing



5. With negative pressure display and control inside the coating boiler.



6. Possess supplied hot airu2019s speed display and control



7. Spray gun anti-clogging function.



8. Memory and printing functions.



9. The above functions enables related technical parameters to realized quantitative display and control, the SOP operation method formulation turns feasible and uses quantitative index instruction for the operation, consistency of medication quality in every lot is guaranteed with totally in line with the GMP requirements.
