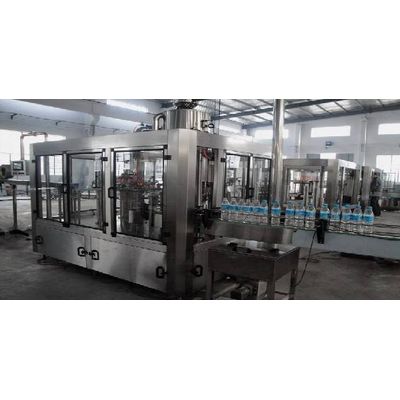

mineral and pure water filling machine--3-in-1 unit

mineral and pure water filling machine

Certification:ISO9001

Material:S.S.304

Bottle type:PET

Production Capability:5000b/h

1. Mineral and pure water filling machine



2. PET bottle



3. Production Capability:5000b/h



4. Washing heads:14 Filling heads:12 Capping heads:15



5. Power of main motor:5.4kw

Characteristics:



1.The water filling machine is used in production of non-soda drink of fruit juice, fruit wine, minerals and pure water packed in polyester bottles. Washing, filling and capping are integrated in one machine.



2.The most advanced technology from Japan and Germany is employed in this design. The gravity fixed liquid surface filling is used. The filling is fast, the amount of liquid is accurately controlled and the dropping and leakage are avoided.



3.Spring cramps are used in the bottle washing process. The empty bottles can be turned over 180u00b0along the conveying rail. There are two times of internal and external washing, the efficiency of bottle washing is high.



4.The magnetic torque is used for screw capping. The power of screw capping can be adjusted steplessly. The power of the screw capping can also be fixed, and the caps will not be damaged, the capping is reliable.



5.The whole machine is controlled by PLC with touch-screen as the human-machine interface. The amount of the drinks in the storage tank can be controlled automatically. The filling and capping will be stopped automatically when there is no bottle.



6.When bottles are cramped wrongly or when caps are not available, the machine can be stopped automatically.
