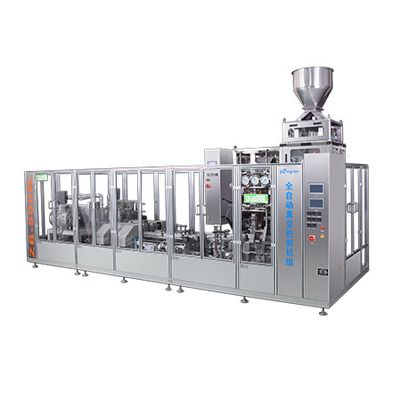

Automatic Beans Vacuum Packaging Machine

Automatic Beans Vacuum Packaging Machine



Automatic vaccum packaging machine,automatic vacuum packaging machinery,automatic vacuum packing machine,automatic vacuum packing machinery,automatic rice vacuum packaging machine,automatic beans vacuum packaging machine,vacuuming machine,canton fair,AUTOMATIC PACKAGING MACHINE,vertical packaging machine

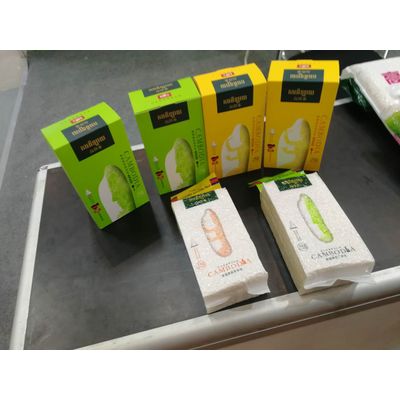

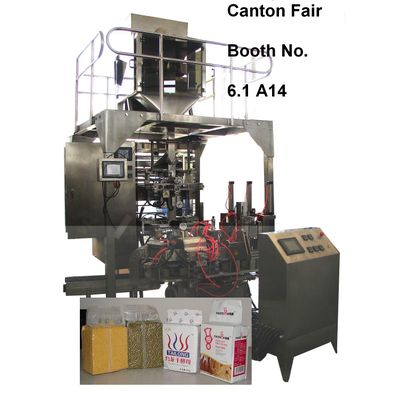

The unit of machine includes one DT2 vertical bucket elevator, one CJS2000 series weighing machine, one VFS5000F vertical packaging machine, one ZB1000A6 vacuum machine, one conveyor and so on. According to different kinds of beans, the bag can be designed to different sizes and shape(cuboids/Cube). Packed bags are well sealed so that the product inside will be well keeped in aspects of both quality and shape.

The unit of machine realizes automatic material conveying, filling, packaging, reshaping, vacuuming, sealing, cutting, product conveying, dust collecting by using the PLC and touch screen. The unit of machine is widely used for packing all kinds of beans.

Technical parameters:
Packaging speed: 8~20bags/min
Filling range: 100~2000g
Bag size: The film wide no more than 540mm
Filling accuracy: 0.2%
Air require: 0.6Mpa 0.65m3/min
Reel outer diameter: Φ 400mm
Core inner diameter: Φ 75mm
Machine weight: 2000Kg
Power: 5.5Kw 380V 50Hz.

beans vacuum packaging;

rice vacuum packaging ; etc.
