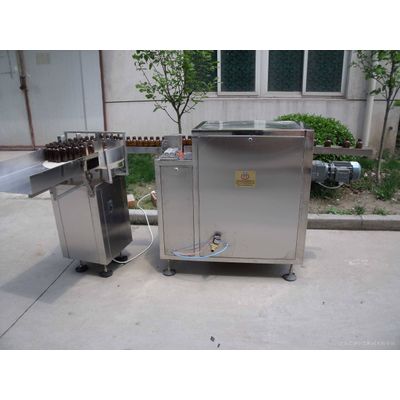

Bottle Hopper/Bottle Feeder/Bottle Feeding Machine

.1) be used with large-high speed production equipment

2) with the functions of automatically feeding materials, arranging bottles and arranging out bottles

3) It is an indipensable equipment on high speed production line.

1) Suitable for unscrambling disordered polyester bottles

2) Aligns bottles and discharges them by vacuum conveyor

3) PLC program controlled

4) Automatic.

5) High speed operation

6) Easy to combine with all kinds of fillers or filling production line

Automatic bottle feeding machine

1.Suitable for unscrambling disorder PET bottles

2.Make them order and in one line

Juice,milk

Technology parameter

Working position: 16

Rated production capacity: 9000-10000B/H

Gas pressure: 0.7MPa

Gas consumption: 2M3/Min

Suitable bottle type: diameter 50-96mm, height 165-310mm

Main motor power: 1.5Kw

Bottle elevator power: 0.75Kw

Blower power: 2.2Kw

Overall dimension: 2200u00d72340

Weight: 3100Kg
