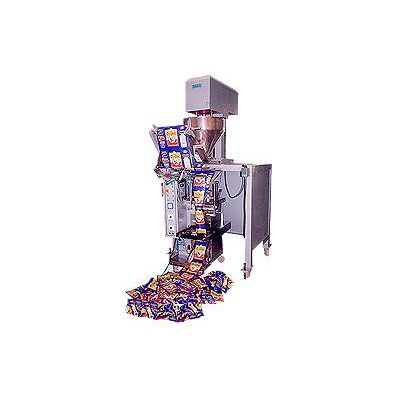

Automatic Form Fill Seal Machine

Baba packaging one name of these manufactures of assorted sorts Automatic FFS Machine provides AN integrated operation from activity, Bag making, Filling and Cutting for Packaging. Powder Filling Machine is provided with an electric eye equipment for Powder Filling, Powder Packing, Masala Packing, Chips, Granules, Tablets, Pan Masala, Tobacco and its bye merchandise, Candy, Jaljeera Powder, Detergent Powder, Lerron Powder, Fish Powder, Bettlenut, Concentrates, Tea, Coffee, Disposable Syringes, prescribed drugs etc.

The Automatic packaging machine performs integrated operations from measuring, Bag making, Powder Filling and Packing.



Equipped with a photocell apparatus suitable to pack Liquid, Paste, Jam, Honey Tomato Ketchup, Shampoo, Soya Milk etc.



Performs all the integrated operations ranging from measuring, bag making, filling, sealing and cutting to packaging.



Equipped with a photocell apparatus suitable to pack General confectionery, Chocolates, Cracker and other rectangular and square shaped solids.

TECHNICAL SPECIFICATIONS

Sealing Type 3 Side Sealing / 4 Side Sealing / Centre Sealing (On request)

Packing Size L: 40-120 mm or 100-240 mm (Pouch Length)

W: 20-160 mm or 20-220 mm (Film Width)

(Enlarged type can be made on order)

Packing range 3-5 gm, 5-30 gm, 30-50 gm, 50-100 gm, 100-250 gm, 250-500 gm (Depending on Specific Gravity of Material to be packed)

Packing Material Any heat sealable laminated film such as Polyester / Poly Paper / Polly Glassine / Poly Polyester / Met / Foil / Poly BOPP / Foil / Poly etc.

Speed 30-120 Bag (Depending on Flow Rate of the material to be packed)

Net Weight 380 Kilograms (appx.)

Motor 1/2 H.P., 220 V / Single Phase / 50 Hz

Heater Load 3 Side Sealing / Centre Sealing (150 W x 2 Nos., 300W x 2 Nos.)

4 Side Sealing (300 W x 4 Nos.)

Machine Dimensions 750 x 560 x 1750 (mm) (L x W x H)

Optional Codding Device,Belt Conveyor,Batch Cutting Device,Bucket Elevator,Nitrogen Flushing Arrangement,Level Sensor Device,Ultra Violet System,Static Charge Eliminator,Servo Stabilizer
