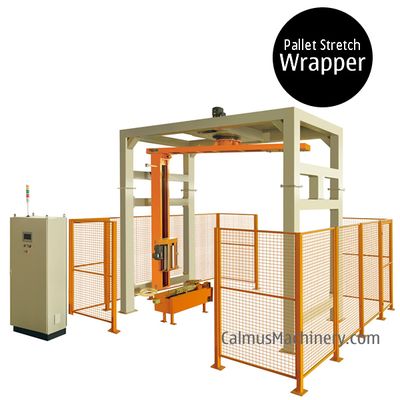

Pallet Film Wrapping Machine Rotary Arm Stretch Wrapper

Pallet Film Wrapping Machine | Rotary Arm Stretch Wrapper

This Pallet Film Wrapping Machine | Rotary Arm Stretch Wrapper is an ideal assistant machine to a production line and a necessary part of an automatic packaging line. It is widely used in chemical, electronics, food, beverage and papermaking industry.

No-human operation. Loaded pallets feeding, film loading, wrapping, film cutting, pallets exiting, all works automatically.

It employs a touch screen PLC controller. Automatically caution alert and faulse alarm. Easy to operate and durable.

Type: rotary-arm, fully-automatic, pre-stretched
Applicable loaded pallet: (500-1300)mm*(500-1300)mm
Wrapping height: max. 2000mm
Wrapping capacity: max. 30 pallets/hour (depends on the pallet size)
Arm rotating speed: 15 circles/min
Weight: main body 2200kg

Wrapping material
1) Stretch film material: LLDPE
2) Thickness: 17-35μm
3) Width: 300-500mm
4) Film roll core diameter: 76.2mm
5) Film roll outer diameter: max. 260mm

IMPORTANT:
Please inform in your inquiry of the Loaded Pallet Dimensions, How Many Pallets per hour you need to wrap, otherwise we can not ensure a quick response to you.
