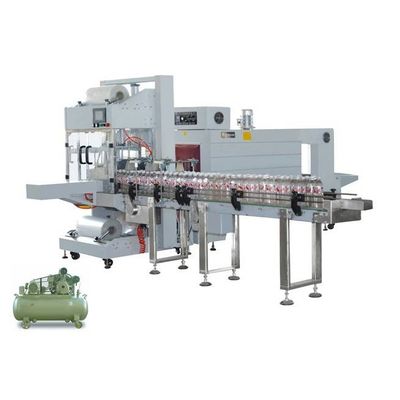

Automatic Sleeve Wrapper (QSJ5040A)

Automatic sleeve wrapper

QSJ-5040A is suitable for wrapping products such as pop-cans, bottles, etc, with bottom-tray or without bottom-tray, working with BSE-6040 or other PE shrink tunnels.



Characteristic:



The Machine adopts the advanced touch screen system for man-machine conversation, 'Schneider' programmable logic controller (PLC), 'AirTAC' air-jar, and all the rest parts adopt international famous brand.

Up and down magnetic switch prevent sealing mistakes, and protect the operators.

'Schneider' PLC, 'Schneider' AC contractor, and Intelligent temperature controller performs stable.



Large power conveyer motor, with stepless speed regulating, ensures smooth feeding.

Up and down large power fan system ensures the excellent effect of shrinking in one time.

Super cooling system cools the packing and makes the figuration perfectly.

Model QSJ-5040A Model BSE5040A

Voltage 3phase 220V/380V, 50-60HZ Power supply 3phase 220V/380-460V 50-60HZ

Power 3KW Heater power 20KW Adjuster

Capacity 0 - 10pcs/minute Conveyer speed 0-10m/minute

Working air pressure 0.4-0.6Mpa Tunnel size(L*W*H) 1500*500*460mm

Width/thickness of the film Max. 590mm/0.03 - 0.25mm Conveyer loading 30KGS MAX.

Max. packing dimension(L*W*H) 450*300*350mm Machine size(L*W*H) 25 00*820*1680mm

n. packing dimension(L*W*H) 250*50*100mm Machine weight 470KGS



Machine size(L*W*H) 1,060*1,600*1,930mm Shrink film PE,POF,PVC,PP

Machine weight 370kg
