Card wrapping machine

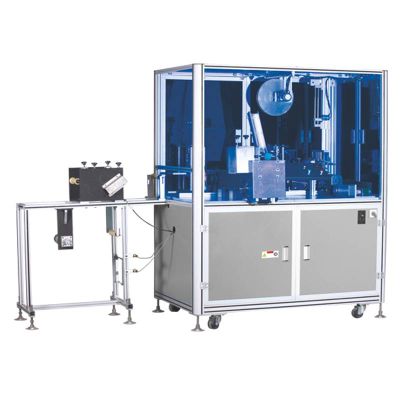

Automatic card wrapping machine



Apply to thickness more than 0.02mm packing film and thickness more than 0.3mm paper card or PVC card.



Working:

Our machine is a automatic equipment integrating film conveying, card conveying, packing, separating, card collecting. Single track and double track are optional, when use double track, can pack two cards in one bag.

Feature:

fully synchronized motion between cards and packing film is facilitated by special designed conveyor system.

Used ultrasonic sealing, ensure perfect sealing

Controlled by PLC, automatic running.

Used touch screen, easy to operate.

Card collecting quantity can be preset.

Easy to change the mold, packing bag size is adjustable. used special rubber roller for film conveying, which ensure stable and smooth conveying

Parameter

Size:3700*1050*1740mm

Weight:800kg

Power supply:AC220V 50Hz

Air pressure:6kg/cm

Control:stepping motor +PLC

card container:600pcs

Operator:1person

Speed:7000~8000pc/hour

for pvc/paper card wrapping
