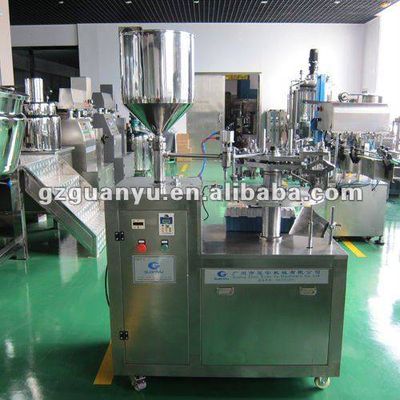

Semi-automatic Aluminum tube filling sealing machine

Detailed Product Description





Semi-automatic Aliuminum tube filling sealing machine

Filling range:5-250ml/pcs(Adjustable)

Production speed:25-40pcs/min

Semi-automatic Aluminum tube filling sealing machine



Description of product:



The device uses a full stainless steel, mainly used in pharmaceutical, food, inks, cosmetics, toothpaste, shoe polish and other thick objects filling, tail-sealing equipment



Working process:



The course of their work with the form of a combination of electrical control and pneumatic control, which makes the operation more convenient and accurate, high precision cam splitter back to the turntable positioning accuracy, high filling accuracy. Intubation, heating, embossing, cut the end of the pneumatic control to ensure that action consistency to achieve Sealing beautiful appearance is neat, solid, high accuracy, according to materials of different configurations of insulation barrel.

Technical parameters:



Filling range

5-250ml/pcs(adjustable)



Filling accuracy

less than u00b11%



Production speed

25-40pcs/min



Tube diameter

10-50mm



Tube length

210mm(Maximum lengt)



Hopper capacity

40L



Voltage

220V/380V(Optional)



Working pressure

0.4-0.6Mpa



Matching motor

0.75kw



Weight

About 450kg



Dimension (L u00d7 W u00d7 H)

1900u00d7850u00d71800mm
