Continuous Band Sealer Horizontal Bag Sealing Machine Pack Width 6-15mm
Home
Continuous Band Sealer Horizontal Bag Sealing Machine Pack Width 6-15mm
Continuous Band Sealer Horizontal Bag Sealing Machine Pack Width 6-15mm
$199.00~$980.00
Min.Order
1
Others
Min. Order: 1
Payments: L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal
Delivery: -
Origin: -
Packing: -
Inspection: -
Product Attributes
Company Profile
Logistics and other information
Product Details

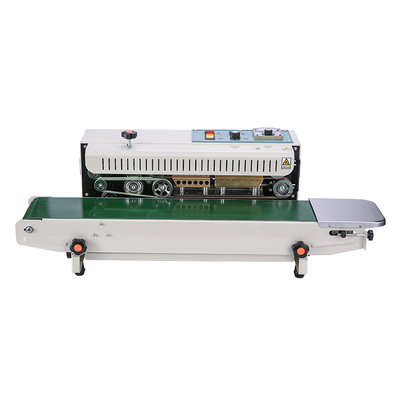

Continuous Band Sealer Horizontal Bag Sealing Machine Pack Width 6-15mm
Our Continuous Horizontal Band Sealer FR-770 is for packing and sealing of dry goods and suitable for sealing and bag-making of various plastic and compound films. The machine uses an electronic constant temperature mechanism and step-less speed adjusting transmission mechanism, making it suitable for the assembly line. You can print the production date, logo, etc. in the film simultaneously. Due to the different thickness of the bag, it is recommended that the temperature and pressure value should be adjusted.
Automatic plastic film sealing machine continuous ink wheel adopts electronic constant temperature control and automatic transmission device, you can control a variety of different shapes with plastic film, in supporting the use of a variety of packaging lines, sealing length unrestricted . The sealing machine with ink coding, with the need to replace the font, in sealing printed on the date of manufacture, shelf life, shelf life and other signs, sealing pattern and logo handwriting is clear and
beautiful. The sealing can be completed, the print date, batch with the need to replace, easy to use, and found articles Food Sanitation requirements. The automatic film sealing machine is suitable for pharmaceutical, pesticide, food, cosmetic, lubricants, and other industry aluminum foil bag, plastic bag, composite bag-sealing, the device has a firm seal, high efficacy; simple and compact structure, small size; shape beautiful, state-of-the-art technology, low power consumption; convenient operation
maintenance, etc., is an ideal sealing machinery.
beautiful. The sealing can be completed, the print date, batch with the need to replace, easy to use, and found articles Food Sanitation requirements. The automatic film sealing machine is suitable for pharmaceutical, pesticide, food, cosmetic, lubricants, and other industry aluminum foil bag, plastic bag, composite bag-sealing, the device has a firm seal, high efficacy; simple and compact structure, small size; shape beautiful, state-of-the-art technology, low power consumption; convenient operation
maintenance, etc., is an ideal sealing machinery.
This kind of seal machine is suitable for bags with a thickness of 0.02 mm-0.08 mm on both sides, fit for the sealing of the plastic bags, aluminum foil bags, compound bags in the industry of the medicine, the agricultural chemicals, food, etc.
Specification
* Power: 700W
* Pattern: Horizontal
* Voltage: 110V/60 Hz
* Heating power: 700W
* Seal width: 6-15 mm/0.24-0.59 inch
* Sealing speed: 0-16 m/min
* Sealing thickness: 0.02-0.08 mm/0.0008-0.03 inch
* Temperature control range: 0 - 400 °C/32 u2109 - 752 u2109
* Conveyor Load: Max. 5.0 kg
* Number of printing: ≤39pcs
* Motor Power: 800W
Technical Parameters
Model | FR-770LW | FR-880LW | FR900 | FRD-1000 |
Voltage | AC220V/50Hz | AC220V/50Hz | AC 220V/50HZ 1 Phase | 220V/50HZ 1Phase |
Machine power | 500W | 500W | 500W | 600W |
Sealing width/thickness | 6-12mm | 6-12mm | 0-13m/min | 6-12mm |
Adjustable length/height | Limitless/15-32cm | Limitless/15-32cm | Limitless/15-32cm | Limitless/15-32cm |
Sealing speed | 0-12m/min | 0-16m/min | 0-300ºC | 13m/min |
Sealing materials | Electronic stepless speed regulation | Embossed steel print | embossed stamp,15 letters/line | 2 lines 30 letters with symbol (English letters need customized) |
Printing type | PP,PE,PET,PVC, aluminum foil bags and etc. | PP,PE,PET,PVC, aluminum foil bags and etc. | PP,PE,PET,PVC, aluminum foil bags and etc. | PP,PE,PET,PVC, aluminum foil bags and etc. |
Working temperature | 0-300 ºC | 0-400 ºC | 0-400 ºC | 0-400 ºC |
Conveying load | ≤5kg | ≤5kg | ≤5kg | ≤8kg |
Packaging size | 896*420*375mm | 880*460*340mm (carton) | 860*410*360mm | 930*400*300mm |
Gross Weight | 23kg | 23kg | 23kg | 30kg |
If you want to know more, please contact me Cathy Shenzhou Group Co.,Ltd Whatsapp:+8618941925296
