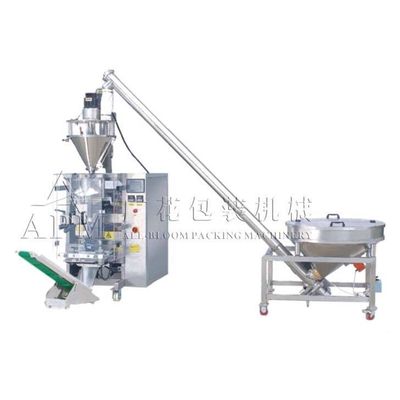

large dose Washing powder packing machine

1.Name:GH730B Vertical packing machine

2.Model:GH730B

3.Capacity:Max 40bags/min

4.Bag size:Length:100-450mm/Width:140-350mm

5.Max film width:300-730mm

6.Film thickness:0.06-0.12mm

7.Air consumption:0.8Mpa 0.8mu00b3/min

8.Power source:1N+PE/50HZ/AC220V/4.5KW

9.Dimension:L1705*W1310*H2190mm

10.Weight:900kg

Features

1.Attractive bag type to satisfy your high demand.

2.It completes bagging,sealing,date printing,punching,counting automatically.

3.Film drawing down system controlled by servo motor.Film rectifying deviation automatically.

4.Famous brand PLC.Pneumatic system for vertical seal and horizontal seal.

5.Easy to operate,low maintenance,compatible with different internal or external measuring device.

Suitable to pack granule,solie state materials,powder and liquid,such as sugar,nuts,beans,coffee,potato chips,puffed,etc.
