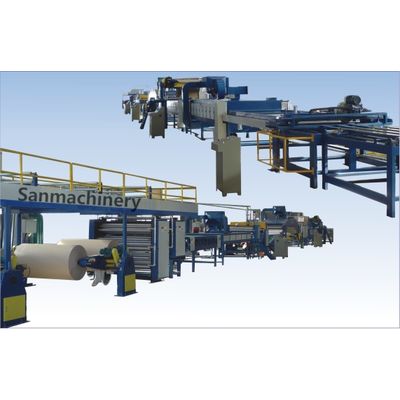

Automatic Honeycomb cardboard production line with CE

This machine is suitable for the production of honeycomb paper core,cardboard.

Operating video for your reference: https://www.youtube.com/watch?v=kC5l9anS1V4

Main technical parameters:
raw material specifications:
Core paper(width*roll diameter)=(2000mm*Φ1200mm)
Core paper weight:110g/m2-140g/m2
Cover paper(width*roll diameter)=(1600mm*Φ1200mm)
Cover paper weight: 180g/m2-400g/m2
paper width: 2000mm
paper core thickness: 10-60mm
finished sheet thickness: 10-60mm
finished sheet length: 500-3000mm

production speed: 0-12m/min
heating: electric heating, hot air circulation
equipment installed power: about 170KW
equipment total length: 68 meters

Our Service

⇒One year guarantee for whole machine, all life follow-up service.

⇒24 hours technical support by email.

⇒Technicians oversea set-up and workers training.

⇒Use- friendly English for operation system.

Packing & Delivery

Packaging Details:Film+ honeycomb board packing.
Delivery Detail:Shipped in 90 days after payment.

THE PACKING IS SEAWORTHY AND SAFE.
