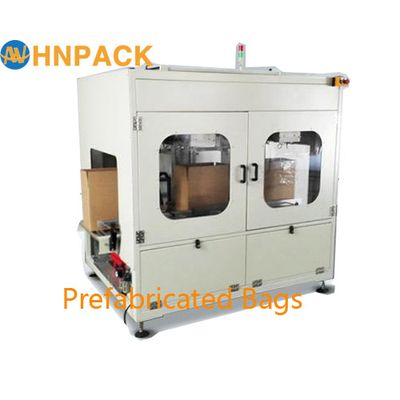

Automatic Cosmetic, Medical Cartoning poly Bag Inserter Carton Box Packing Machine

Plastic bag insert machine are a great time and cost saving solution, that allows you to either fill directly into your box without other packaging, or to offer better protection for your precious product, by enveloping the product in a protect plastic bag layer.

Plastic bag insert machine suitable for different sectors, such as: food, electronic products, stationery, plastic products, beverages and so on.

From a tubular film roll, suction cups pick up the end of film and form the bag while the welding bar seals and cuts the bag.

This machine has an inverted insertion. The bag is inserted into the outside part of the box top flaps and by a blowing system the bag is pressed against the interior walls and bottom of the box. The box is ready to be filled.

Inserting Process

Auto bag Inserter machine -- Bag inserting machine

Technical features

Production (according format) - 6 cartons up to 10 cartons / min.

Electric power - 110V/220V/380V/400V, 50HZ/60HZ

Installed power - 2 Kw

Pneumatic installation - 6 bar

Technical features
Production (according format)  -  up to 10 boxes/min.
Electric power -  110V/220V/380V/400V, 50HZ/60HZ
Installed power - 2 Kw
Pneumatic installation   -  6 bar

Plastic bag insert machine, Bag inserting machine, suitable for those sectors that have a high-need of hygiene, such as: frozen products, prepared meals, agricultural products, oil and so on.

Applications:

For packaging various products such as food, electronic products, stationery, plastic products, hardware, screws, beverages and toys.

Applications:

The unit is suitable for various products such as frozen food, processed food products, agricultural products, electronic products, stationery, plastic products, hardware parts, toys, powders, and liquid foods
