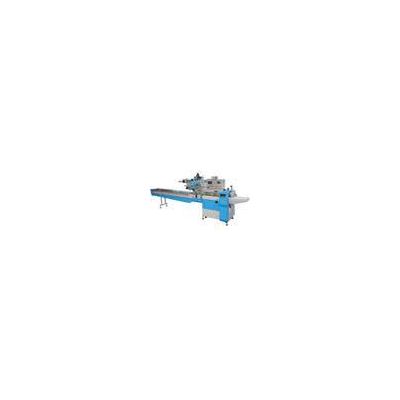

YWB450X automatic packing machine

Brief introduction：

YWB450X automatic packing machine based on advanced techniques and rich experience, possesses first-class electric configuration, excellent intelligentized control and precise mechanical transmission, which could meet the packing needs of most enterprises.

Application；

Suitable for automatic packing of bread, in-flight meal, instant noodles，biscuits, snacks, medicine，soaps，ice cream，chocolate, frozen food,tissue,adhesive tape,sponges,hardware parts,etc.

General technical parameters:

Production capacity: 30-170 pcs/min

Packing range: Length 70-400mm Width 20-140mm Height 5-75mm

Power consumption: 3.7kw single phase 220v

Net weight: 1000kg

Floor space: 5100u00d7940mm(Lu00d7W)

Packing material: Any thermal sealing materials like paper/PE, OPP/PE, OPP/AL/PE, etc.

Mechanical features:

1.Mechanical structure is simple and user friendly.

2.Close vertical sealer system makes the vertical sealing defects free and smooth.

3.High-speed end sealer system makes clear and beautiful sealing stripes.

4.Localized parking.

5.Safety clutch for delicate objects.

Electronic features:

1.Any operation mode and the necessary adjustment can be made easily by controlling knobs and buttons in one front location.

2.Displays information: bag length, packing speed, and output count.

3.PLC control, reduce mechanical contact, ensure system stability and easy routine maintenance.

4.Inverter is used to adjust the running speed, directly and conveniently.

5.Photo sensor to detect color code and two-way tracing.

Optional devices:

1.Automatic cupped snacks feeding device

2.Automatic feeding device

3.Mechanical inserter

4.Pneumatic inserter

5.Automatic medicine board falling device

6.Automatic grouping device

7.Perforating device

8.Automatic transmission device

9.Automatic arranging device

10.Date printer
