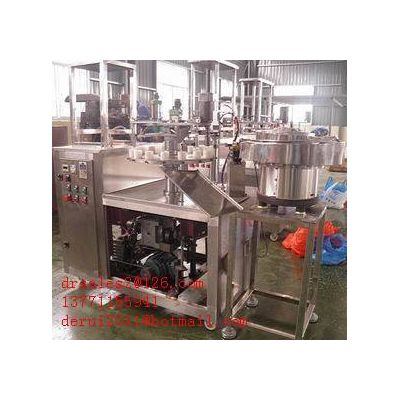

502gule automatic filling machine

It is mainly for dosage filling and sealing metallic tubes, which is widely used in pharmaceutical, daily chemical, foodstuff, chemical and so on, such as ointment, bond, AB adhesive, hair dye, shoeshine, toothpaste and others.



Assembly line:



Operator Inserts tube into chassis (16 work positions), mechanical transmission makes the station dial rotate automatically, when photoelectric checks and confirms tube, fill. No tube no fill. Then sealing, finished products out.

Structure feature:

Adjustable filling capacity and speed, high metering precision and good stability. It is suitable for various metallic tubesu2019 fill and seal, the sealed products have nice and trim shape, seal firmly.

All contacts are made of stainless steel (Normally SUS304, 316L for Pharmacy).

Main technical parameter:





Voltage

AC 220Vu00b110％ 50Hz



Working temperature

5-50℃



Filling capacity

5-20ml、20 mlu2014125 ml、100 ml -500 ml (others need customize)



Accuracy

u00b12%



Motoru2019s power

0.75kw



Compressed air

Pressure 0.6-0.7Mpa Air feed capacity: ≥0.2m3/min



Producing capability

20-45 pcs/min (Adjustable)



Overall Dimension

1000 mm x600 mm x700 mm



Weight

200kg
