Form, Fill, Seal Machine

Form Fill Seal (FFS) machines are packaging machines that form fill and seal a package on the same machine.



The main types are vertical form fill seal (VFFS) and horizontal form fill seal (HFFS) machines - a term often used in the market place to cover horizontal versions of flow-wrappers, sachet machines, blister pack machines, four side seal machines and thermoform fill and seal machines.; in both cases packaging material is fed off a roll, shaped, and sealed. The bags/packs are then filled, sealed and separated.



Today many FFS systems are highly sophisticated featuring computer interfaces and control networks. Greater speed and versatility are the major benefits of FFS systems for user companies. For example snack producers demand systems that have the versatility to provide fast changeover between many different packaging formats to meet growing demand for single serve packs. Here VERTICAL FFS is capable of creating virtually any size or shape ranging from the standard pillow pack to bags sealed on all four sides.



The multiplicity of FFS machines employ a wide range of material types and are used across numerous markets including food, drinks, cosmetics, electronics, stationary, tobacco, chemical, medical, and pharmaceuticals.

Features :-

- Our range of automatic form fill and sealing machines are widely used in the packing of dry items like dry tea, peanuts, detergent powder, milk powder, salt, powdered spices, sugar, glitter powder, mouth freshener etc.

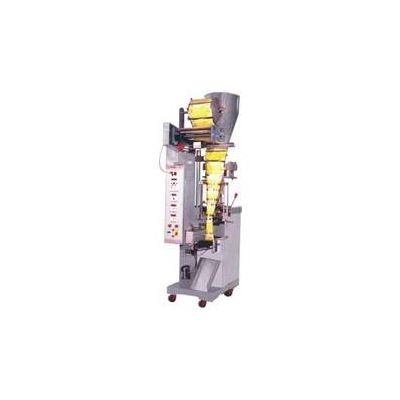

Product Model No.: EIFFS



Specification :-



Type of sealingThree Side Seal

Packing Film MaterialAny Heat Sealable Laminated Film Such As Polyester/Poly,Paper/Poly,Glassine/Poly,Foil/Poly,Bopp/Poly

Production Capacity50-60 Pouches/Minutes( Depending on the Specific Gravity, Flow rate Volume of Product to be Packed)

Packing Range2gms.-5gms. ( Depending on Specific Gravity of the Product to be Packed )

Power RequiredMotor :- 1/2 H.P. Single Phase 50 Hz / 220V ( Depending on Size)

Heater LoadMax. of 2 Kw



Machine Dimension825 mm L / 630 mm W / 2000 mm H

Weight215 Kgs. Approx

Dosing / Filling SystemCup Filler ( Volumetric )



Filling Accuracy+/- 2%

Application :-

- Beverages industries

- food industries
