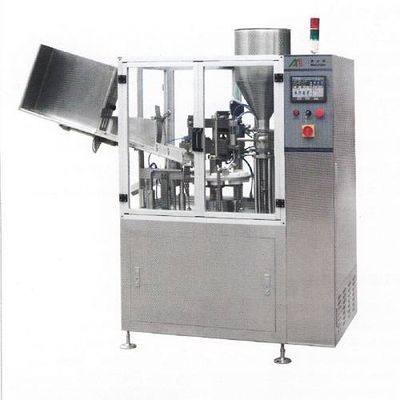

KRGFJ-60 Filling &sealing machine

he transmission parts is closed under the platform safely with no pollution.

The loading and sealing part is installed in the visible cover,which is in the half-closed static -free frame above the plat form.It is easy to watch,operate and maintain.

Stainless steel operating panel with touch switches.

The arc rail is matched with vacuum absorbing device.When the tail and pressure tube are working together ,the soft tube is fed into the upper working station.

The photoelectric target-aiming working station employs accurate detector and marching type motor,ensuring the tube design at the correct position.

When filling is finished ,the end is blown away by the air blower.

No feeding is done when there is no tube available.

The heat blower goes into the tube end for sealing,and the other part is equipped with cooling device.

Character code printing working station automatically prints the character code at the pace required by the process.

The reshaping manipulator cuts the soft tube into right-angle shape and round shape for choice.

There are alarm devices for failure and no tube.The machine stops working when overloading happens.

The machine stop working when counting the number or fixing the quantity.

Production capacity:20-45 pcs/min (frequency conversion and speed regulation)

Filling capacity:5-120ml/pc

Power of the main motor:1.1kw

Power for heat sealing:3kw

Working air pressure:0.6 Mpa

Air displacement :not less than 600L/min

Outer dimension:1950*750*1850mm

Weight:750kg
