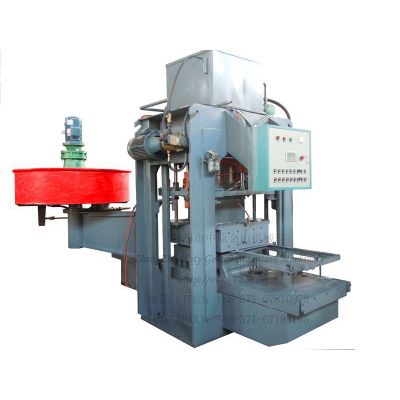

JS-128 automatic roof tile forming machine

JS-128 automatic cement roof tile press machine



1. Its merits includes the high forming rapid, the high output, the PLC automatic control, the reliable performance, the convenient operation, the fully hydropneumatic driving, the high producing speed of 8 pcs/min, the high rate of finished products, and the excellent performance-price ratio



2. It's made of cement sand stone debris chemical color, formed by extruding, with the nice shape, various types, great stability and exact size.



3.It's multifunctional. By changing the mould, it could be used to produce paving slabs Blind way brickParking lot bricklawn brick , etc.

Main Motor Power

5.5kw (corollary equipment: 20#gear pump)



Forming pressure

128T



Forming speed

7-8 paces/min(300*300mm, 400*400mm)



Main body

Four-column structure: Steel body



Slid platform drive

Adopting swing cylinder or linear cylinder drive



Quantifying equipment

Made of special steel; Wear resistance



Quantifying feeder





Specification:1200



(Additional equipment:1.5kw motor)



Materials of mould

Special steel for mould



Compulsive mixer

Specification:1150



(Additional equipment:5.5kw motor)



Elevator

Additional equipment:2.2kw hoist, speed reducer



Elevator bucket

Load capacity:150kg



Installed capacity

15KW



Weight

5T



Overall dimensions

2900u00d71600u00d72600(mm
