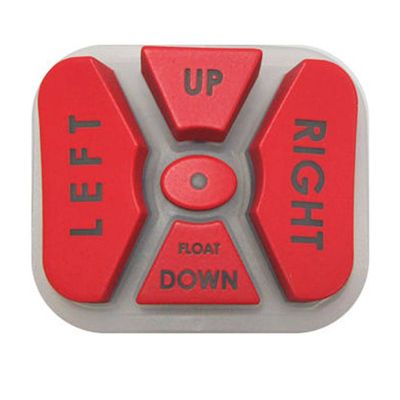

silicone keypad for control remote

Silicone Keypad for Electronic Controller:

Silicone rubber keypads are made of high elastic, nontoxic silicone rubber compounds, which are processed by compression or injection molding and curing

They are economic and reliable and ensure the high productivity and useful life

Also provides great convenience for integrating with the printed circuit boards in any form

Sensitivity and tactile feedback can be adjusted to meet the requests of operators

Due to the excellent characteristics of silicone keypad, it is used in various industries to satisfy cost, reliability, environmental, and ergonomic/cosmetic styling requirements

Contact rating: 20mA,24VDC

Contact resistance: 200 ohm max

Lifetime:1,000,000 cycles per key

Operating Temperature: -20u00b0 C to +60u00b0 C

Storage Temperature: -40u00b0 C to +65u00b0 C

Actuating force: 100 u00b1 30 grams

Stroke: 1.4 u00b1 0.3mm

General speaking, the silicone rubber keypad is made by using compression molding & silk screening, it is a simple silicone rubber keypad with opaque/ transparent material and positive image printing. The ink used for the graphics is a silicone based ink so that it is bonded to the base material after post curing. A coating is applied tou00a0extend the life of the graphics if requested.

1) Silicone button is not easy to be aged and hardened because of the stability of physical and chemical properties.

2) It is a non-toxic, tasteless and extremely soft materials, and harmless to our body. It can be repeated bending but will be difficult to break.

3) Silicone products have excellent resistance to extreme temperature (from -40C-230C).

4) Silicone materials have got the FDA certificate so that products can be contacted with food directly.

5) Silicone button is with the oil-resistant, corrosion-resistant and radiation-resistant, and also they are easy to clean.

6) Silicone button will not make impact noise, also prevent other household utensils with scratches.
