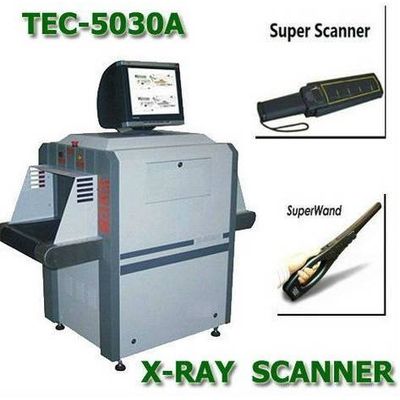

TEC-5030 X-ray luggage scanner,x ray baggage inspection machine

TEC X-ray security inspection system is the global technology leader in X-ray imaging system. The device combines many advantages of the high -low energy detector array, digital image processing techniques and computer technology, provide the high-quality image of reliable and efficient services for the users.



Establish this manual especially in order to make the user have a thorough understanding to the equipment, and use the equipment more conveniently.



This manual fully describes the work principle , maintain, maintenance, and maintenance of the Shenzhen TEC X-ray security inspection system. please read this manual carefully before using X-ray security inspection equipment,. the company does not undertake any responsibility if the user damages equipment for does not complying with safety regulations .



Only the person who have received formal training operate can equipment. In order to avoid radiation hazards, the operator must always be strict compliance with radiation protection rules. Shenzhen Tonyhoney Electronics company limited. has the copyright of this manual. Nothing can reproduct it in any form manual but someone have the permission of TEC and authorized agents.



As the time and energy is limited, the manual may be have inadequacies and omissions, please customers and experts give the criticism the correction.



System Overview



1. Work Principle



Equipment complete the examination by means of that belt making the baggage into the X-ray inspection lanes. Luggage into the X-ray checkpoint to stop the package detection sensor,the detect signal was sent to the system control part to generate X-ray trigger signal,. After a bunch of X-ray fan-shaped collimator beam passing through the items on the belt, X-rays were absorbed by seized items, finally, Bombarding dual-energy semiconductor detectors installed in the channel. The X-ray into the signal through detector, these weak signals are amplified and sent to the signal processing box for further processing.



2. The main purpose



X-ray security screening equipment widely used in airports, railway stations, bus stations, government buildings, embassies, convention centers, exhibition centers, hotels, shopping malls, major events, post offices, schools, logistics, industrial inspection and other places.

Network interface:Capable of connecting to LAN, and support multi-terminal check for baggage at same time.

Safety x-ray control:X-ray is transmitted under automatic control, avoiding the error.

One-key shutdown control:Just rotate the key to shut down the machine; it is safety, easy and convenient.

Environmental protection design: Protective cover on lead curtain to avoid lead pollution.

Energy saved design:the machine can check the tunnel automatically to see whether there are objects. The conveyor belt will run only when there is object on it. Otherwise, it is no run.

Easy learning and Easy operation: offer user-friendly interface.

Super large Image storage:1,000,000 pictures in real time

Image Performance System

Display:High resolution 1920*1080; 24-bit Color; 19" LED display

Edge enhancement:Object contour edge is more distinct

Super image enhancement:Image detail is more distinct

High penetration display:Increase the contrast of bright area in image to make the area that is easy to penetrate appear more clearly.

Low penetration display: Increase the contrast of dark area in image to make the area that is difficult to penetrate appear more clearly.

Magnifier:Partial magnifying function

Brightening/dimming:Increase/Decrease brightness of image

Image recurrence:Display the previous images and process any one of them

Image restoration:Restore image to initial status

Image storage:Real-time store any image and process it in operation status.

Tunnel Size 500(W)u00d7300(H)mm

Conveyor Speed 0.22m/s

Conveyor Max Load 160 kg

Single inspection dosage < 1.32u00b5Gy

Wire Resolution 0.0787mm metal line

(40AWG)

Penetration resolution 0.254mm

Spatial Resolution 1.0mm Horizontal

1.0mm Vertical

Steel Penetration 10MM armor plate

Film Safety For ISO 1600

for luggage ,baggage,and cargo inspection in airport,station,jail,prison,etc.
