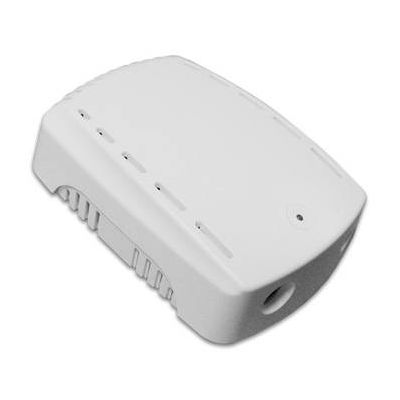

Wireless Ammonia Gas Detector

WL-AQA-A01 wireless ammonia detector is a IOT sensor which is based on ZigBee/SmartRoom technology design. This product is mainly used for detecting ammonia gas concentration in the air and sending out signals to the cloud or designated devices, such as mobile phone, tablet, PC etc. Meanwhile, the product can also be linked with other control devices(exhaust system etc.) according to the monitoring result.

The product has little interference to CO, H2, CO2, SiH4, it can be widely applied to aquaculture, animal husbandry, agriculture, petroleum, chemical industry and green industry. Wireless transmission, compact size and light weight make it competitive, it has a wide application, moreover, it is suitable for indoor and outdoor environment etc.

Measuring Range

0-100 ppm

Max. Load

200ppm

Working Life

Two years in the air

Output

120u00b130nA/ppm

Resolution

1ppm

Temperature Range

-10to 40

Pressure Range

Atmospheric Pressure

Response Time(T 90)

< 50 seconds

Humidity Range

15-90 %RH(Non-condensed)

Zero Output

0ppmu00b134ppm

Max Zero Drift(20to 40)

-8 ppm

Long Term Drift

<5%/ Six Months

Recommended Load value

10

Transmission Mode

ZigBee/SmartRoom

Transmission Range

100m

Bias Voltage

No need

ITEM (GTIN):WL-AQA-A01
