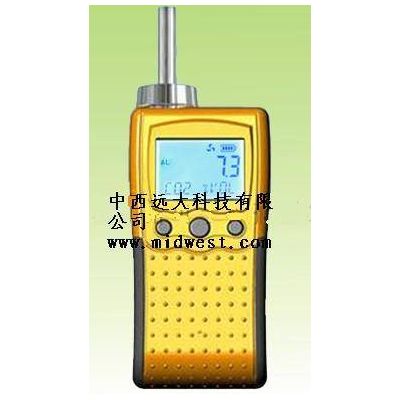

Pumped type ozone detector

Feature



the small volume, light weight, waterproof, dustproof, explosion-proof, shockproof design

* high precision, high resolution, quick response

* a larger capacity rechargeable battery, and lithium electricity can be long time continuous work

* Digital LCD backlit, sound and light, vibration alarm function

* sensor using a world-class level of import original electrochemical sensor

* upper and lower limit alarm value can be set in a random, bring their own zero and target calibration function

* Built-in temperature compensation, easy maintenance

* Data recovery function, avoid the incorrect operation caused by the mistake operate

* The shell is made of special material and process, is not easy to wear, easy to clean, long time use if brightness is new





Technical parameters:



Detection gas: ozone in the air is concentration

The detection principle of patent: electricity

detection range：0-1ppm、5ppm、50ppm、100ppm、200ppm、500ppm、1000ppm for choose

distinguishes rate：0.001ppm（0～10 ppm）；0.01ppm（0～100 ppm）；0.1ppm（0～1000 ppm）；1ppm（1000ppm以上）

Detecting way:：Ciffusion Type/Pump suction style

display modes：LCD backlit

precision：≤u00b13%（F.S）

type of alarm：Sound and light, vibration alarm, the power supply voltage alarm

response time：<30S

recovery time：<40S

Working power supply：DC3.6V

Sensor life：3 years

service environment：temperature-20℃~+70℃；relative humidity (RH)≤95%RH（No gel）

battery capacity：3.6VDC，1800mA , Take charge protection function

Explosion-proof type：intrinsic safety

mark ：Exia II CT6

Protection grade：IP65

Size：125u00d752u00d730mm(Lu00d7Wu00d7H)

Weight：200g

the small volume, light weight, waterproof, dustproof, explosion-proof, shockproof design

* high precision, high resolution, quick response

* a larger capacity rechargeable battery, and lithium electricity can be long time continuous work

* Digital LCD backlit, sound and light, vibration alarm function

* sensor using a world-class level of import original electrochemical sensor

* upper and lower limit alarm value can be set in a random, bring their own zero and target calibration function

* Built-in temperature compensation, easy maintenance

* Data recovery function, avoid the incorrect operation caused by the mistake operate

* The shell is made of special material and process, is not easy to wear, easy to clean, long time use if brightness is new

Model:SZ55/GD80-O3,M 360238

Detection gas: ozone in the air is concentration

The detection principle of patent: electricity
