wired and wireless outdoor beam,pir beam

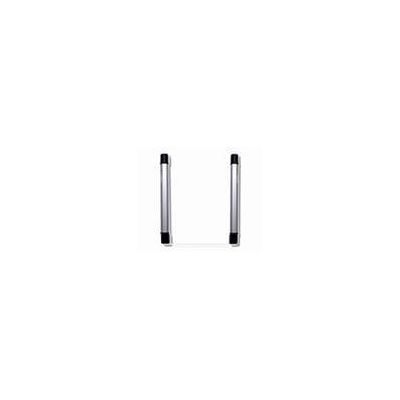

Wired Wireless Outdoor Intrusion Infrared Beams with Duplex Digital Communication

power
DC12-18V
Alarm output
Wireless and wired available
Delay contact capability
3A/125VAC/DC 5V0.2W
trigger time
40ms

Response speed
≥1.5 seconds

Optical axis adjusting angle
Horizontal angel: 180°(±90°)

Operation temperature and humidity


Temperature: -35u2103~+55u2103 Humidity: ≤95%


Product Feature

Model No:AYD-RB4

Main features:
With micro computer intelligent handling technology and excellent functions.
Detecting distance adjustable, protecting indoors and outdoors.
Special digital filter wave, strong anti radio frequency interference
Material: aluminium alloy, Anti-dismantle and anti-cut designed
2 beams cut off at the same time to inspect, avoiding the false alarm cause of pet, birds and the like.
Several types available: wired / wireless / wired and wireless compatible, different beams and
different height available.
Installed in 360 degrees freely.

Technical Parameter:

Beams number
2 beams
3 beams
4 beams
6 beams
8 beams
10 beams

Valid length(cm)
28
45
63
116
158
200

Whole length(cm)
36
53
71
124
166
208

Weight (Kg)
0.48
0.58
0.68
1.08
1.58
1.98

Max standby current (mA)
transmitter
≤160
≤160
≤160
≤175
≤175
≤185

receiver
≤70
≤70
≤70
≤70
≤70
≤70



Protection distance (m)
10 10 10
10
10
10

20
20
20
20
20
20

30
30
30
30
30
30

power
DC12-18V
Alarm output
Wireless and wired available
Delay contact capability
3A/125VAC/DC 5V0.2W
trigger time
40ms

Response speed
≥1.5 seconds

Optical axis adjusting angle
Horizontal angel: 180°(±90°)

Operation temperature and humidity


Temperature: -35u2103~+55u2103 Humidity: ≤95%
