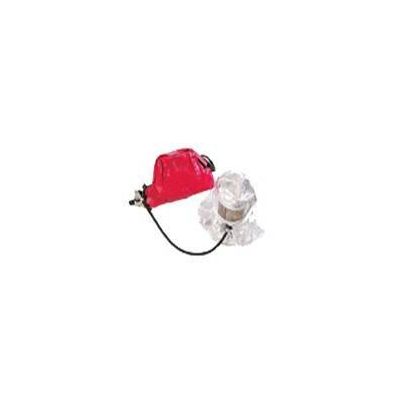

THDF Series Emergency Escape Breathing Device

Emergency escape breathing devices

1. The EEBD are only used for escape from a compartment that has a hazardous atmosphere to provide personnel breathing protection .Not to be used for fighting fire, entering oxygen deficient voids or tanks, or worn by fire fighters 2. There is a pressure gauge on the cylinder to indicate the cylinder pressure .The cylinder pressure of EEBD is not indicated by a pressure gauge during storaging.3. The hood is a flame resistant head cover which completely covers the head, neck, and may cover portions of the shoulders, there is a clear window on it。4. Easy to use, open the cylinder valve and put the hood on head when use

1.Cylinder Volume(l):2.2/3

2.Working pressure(Mpa):21

3.Storing air(l):>400/>600

4.Supply airflow(l/min):≥35

5.Usable time(min):≥10≥15

Type:THD/10-I,THD/15-1

CCS,EC
