Silver Ion Sterilizer (Ags-15)

The Silver Sterilizing Unit is designed to provide disinfection to potable water onboard, and inhibit growth of

bacteria and germs. Silver sterilizing is a very old way for fresh water treatment, the treated water can be kept

fresh for longer time than other treatment, likes UV sterilizing and chemical dosing etc.

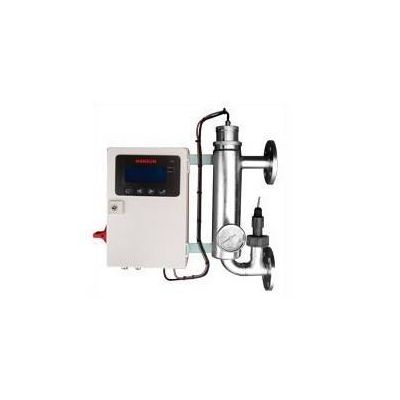

The whole system includes stainless steel chamber, silver ion electrodes, flow meter, pressure gauge, control

cabinet.

The control system is arranged through a PLC controller, which collects information from flow meter or other

input control signal, and keep dosing rated with flow, which can be controlled at such conditions likes the failure

of control cabinet and the silver ion dosage lower etc.

Silver Ion Sterilizer



Disinfecting fresh water by doing silver ion is a traditional but effective method; it is a way that does not change taste, smell and color of treated water; a way that does not effect the wateru2019s physical and chemical properties. Therefore it is harmless to human body.



Concentration of ion in water can be controlled by matching water flow & current load; normally no more than 0.05PPM of Ag+ is a safe level.



Model: Ags-15



Capacity: Max. 15m3/h; 0.04ppm dosage

if you have any interested in our products,kindly pls contacts,thanks.

Number of silver plates :1 pc of twin silver plate with 100% purity
