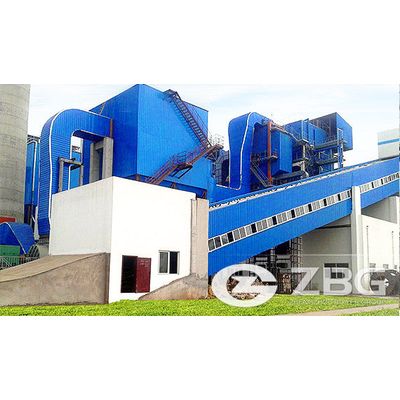

Rice Husk/ Straw Biomass Power Plant Boiler

Type: Steam boiler/hot water boiler
Capacity/Hot Power: 10-160t/h
Pressure: ≤5.29MPa
Fuel: Distillers Grains, Bagasse, Biomass Pellet
Application: Power Generation

Brief Introduction:
This type of boiler could burn shaped distiller biomass pellet, bagasse biomass pellet, coal fuel, so it is very popular in the market.

Biomass Fired Fuels Include:
biomass corner tube boiler

Shaped biomass fuel
Sugarcane bagasse
Rice husk and rice straw
Coconut shell
Palm kernel shell(PKS)
Peanut shell
Agricultural waste
Wood pellet/chips
Sawdust
Coal,Biomass,Co-firing
Application:
Used in large scale central heating, thermal power plant, city heating

Features:
Adopt patented design
1) Flying ash re-combustion equipment based on the high temperature separation, combustion efficiency is improved
2)Combined uniform flow design technique of comer tubes boiler flag pattern surface ensure high heating effect
Adopt Cross-girder grate
it has the features of less operation resistance, better grate cooling effects, lower breakdown rate, less fuel leak.
Light-weight furnace wall structure
Better insulation performance, dust-tight, and the whole boiler adopts secondary air turbulent combustion design, to realize high combustion efficiency.

Model Rated Steam Capacity Rated Steam Pressure

(bar) Rated Steam Temperature

(u2103) Rated Water Temperature

(u2103) Fuel Type

t/h BHP

DHL20-1.25-AII 20 1532 12.5 194 105 (Biomass fuel)

Bituminous coal

DHL20-1.6-AII 20 1532 16 204 105

DHL20-2.5-AII 20 1532 25 226 105

DHL35-1.25-AII 35 2681 12.5 194 105

DHL35-1.6-AII 35 2681 16 204 105

DHL35-2.5-AII 35 2681 25 226 105

DHL45-1.25-AII 45 3447 12.5 194 105

DHL45-1.6-AII 45 3447 16 204 105

DHL45-2.5-AII 45 3447 25 226 105

DHL75-1.25-AII 75 5745 12.5 194 105

DHL75-1.6-AII 75 5745 16 204 105

DHL75-2.5-AII 75 5745 25 226 105
