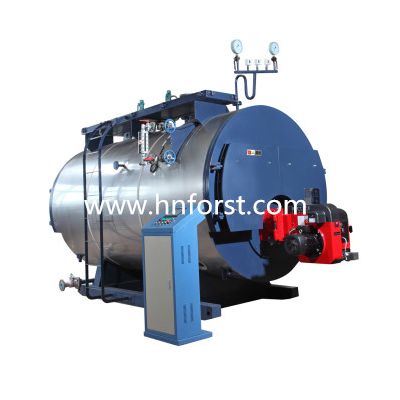

6t/h industrial use waste oil fired steam boiler

features of 6t/h industrial use waste oil fired steam boiler

High efficiency--Energy saving

The steam boiler with center adjustment wet back three pass structure. The boiler is designed with the large furnace. The large furnace and adequate smoke tube effectively increase the radiation heating surface and improve the thermal efficiency of the boiler;

The smoke tube in furnace is arranged with spiral deflector to increase the flue gas flow process to prolong the time of heat transfer, which effectively improve the thermal efficiency;

The wet back structure protects the tube plate from the high temperature of flue smoke and greatly prolongs the service life of the boiler;

The furnace structure is corrugated furnace with thermal scalability. The airflow design ensures furnace temperature uniformity and effectively absorption of flame heat. It can also effectively inhibit the formation of nitrogen oxides (NOx). With the excellent imported burner, the fuel can burn out;

With the energy-saving technology of the condenser, our boiler thermal efficiency is above 98%. Meanwhile the exhaust flue gas temperature is lower than 90u2103.

Technology - Environmental Protection

The boiler is equipped with the high combustion efficiency burner. With the ultra low nitrogen oxide( NOx) emission burner and advanced emission reduction technology, our boiler nitrogen oxides (NOx) emission can reach up to the most strictly Environmental Protection Standard with the emission less than 30mg/m3 .

The big furnace design can not only improve the full combustion of fuel but also can reduce the thermal load of the furnace, which effectively reduce the emissions of nitrogen oxides.
