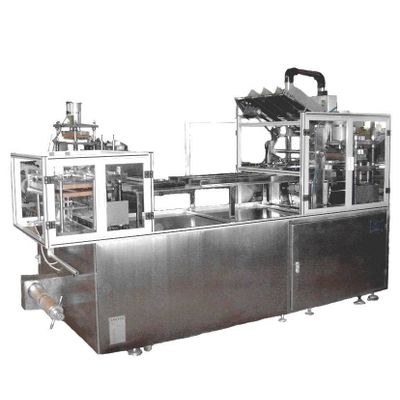

Blister Packing Machine

The automatic blister packing machine is special designed and constructed for wide industrial blister packaging usage. The blister Packing Machine is use different packaging material with other blister machine, the machine is used PVC board and Paper card. It is provide nice and good quality packaging for various of products. The Packaging is moisture proof and dust-proof,and enhancing level and addtional value of products. The blister machine is widely applicated to pack such products, Battery, tooth brush, pen, toilet appliance, hardware, injectors, and so on.

1. PLC control system, friendly interface, and intelligence software can show the fault automatically. Touch screen can show all of the information and data of machine clear.



2. Servo motor control feeding film automatically. The machine performance is more steady and easy control.



3. Adopts import frequency transformers to control switch for longer

service life



4. The die is located with location pin preciously and easy to replace.



5. Adjustable stroke, pressed forming, registering-heating, upper and lower moir, heat-sealing



6. Completed automatic blister forming, heat-sealing, and punchin



7. Hi-sensitive electric-eye, which can trace the printed web on film, make the sealing and cutting on correct position.



8. Made of stainless steel both inside and outside of the equipment





Main technical parameter

Model: DZP-500F



Packaging material: PVC hard sheets and paper cards



Max width of PVC roll: 500 mm



Paper card size: L(40-500), W(40-150),



Pounch speed: 6-20 times/min.



Stroke: 40-120 mm



Packaging size: L(40-500), W(40-150), Max. blister depth(10-100)mm



Motor consumption: 1.5 Kw



Power supply: AC380V 50Hz, 9Kw



Air pressure: 0.5-0.8 MPa



Air consumption: More than 500L/min



Weight: 2500Kg



Overall dimension: (LxWxH, mm)

4000u00d7850u00d71700



Dimension of input table: (LxWxH, mm)

1650u00d7320u00d7930
