Electric capping machines

Detailed Product Description





1.Capping. can apply to cap screwing of plastic, round bottles on the packaging lines.

2.Capacity:aa200Bottles/min

3.Screw cap

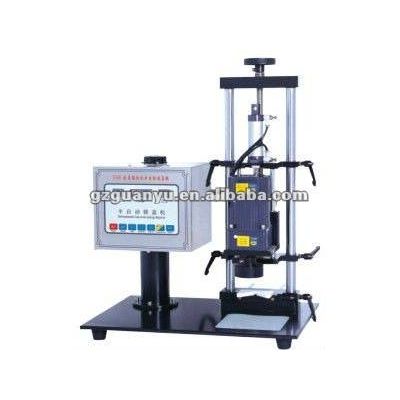

GY-SGB Semi-automatic Capping machine







Principle and Features



Suitable for the cap screwing of different shapes of bottles in the industries of foodstuff, pharmaceuticals, daily chemical, pesticide and cosmetics etc. Its four adjustable speed motors are used respectively for cap supplying, bottle clamping, delivering and cap screwing. It is characterized by high level of automation, outstanding stability, easy adjustment, no need of spare parts for replacing bottle types or caps, which can be done only by making adjustment. (If fitted with capping machine, it may carry out automatic capping).







1. Product Features

1, the electrical control movement;



2, positioning device, easy to operate;



3, locking cover wide range of lockable caps of different switch sizes;



4, locking cover, speed adjustable, can adjust the tightness of different caps



Applications: Suitable for cosmetics, pharmaceuticals, beverages and other bottles of the lock cover



II. Technical parameters



working power

AC220V,50/60HZ



Maximum power

80W



Host size

565*467*671mm



packing size

655*567*751mm



weight

Gross weight 59KG,



net weight 44KG



Using gas source

4-6kg/cm2



speed

0-40bottles/mintue



capping diameter range

Height 50-300mm,



Diameter 20-50mm



Torque or capping

4-8kgf/cm
