UHF RFID Antenna multiplexer

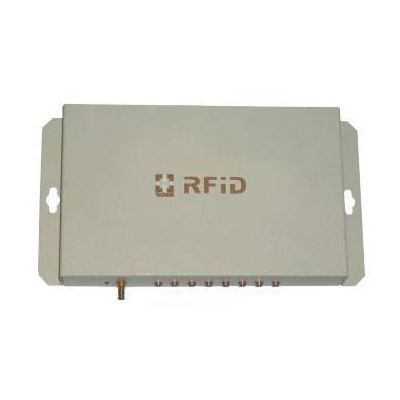

VX-3 UHF RFID Antenna Mux is our lastest product. This Mux has 1-8 UHF RFID antenna port , can be used in networking and assign RFID solution and tag smart shelf and its application. VX-X antenna Mux is made up of main Mux and Slave Mux. Aluminum alloy enclosure that can be stalled in indoor cabinet or out door cabinet that has better ventilation and waterproof and dust-proof .

Each RF Output port (ANT1-ANT8)of Main Mux can connect up to 32 units RFID antenna, it means each main Mux can connect 4 units slave Mux. Note: Considering their will be no need 256units antenna in actual application , please layout reasonable to make it more effectively .

Flexible deploy . enlarge reading/wrting field , save cost a lot , all these features make it become the best equipment for production management and smart shelf item tracking management solution

Model(Order Code)：VX-3/M

Physical Characteristics

Dimensions： 61(L)*45(W)*8(H)mm Weight：500g

Environment

Operating Temp：-10u00b0C to 55u00b0C (14u00b0F to 131u00b0F)

Storage Temp：-20u00b0C to 80u00b0C (-4u00b0F to 176u00b0F)

Humidity ：10% to 95%

Non-condensing enclosure:IP-40

RF Output Port:8 SMA (Female)

RF Input Port: 1 SMA (Female)

Power: 12V2A DC

Frequency Ranges: 860-960 MHz

RF power control:33dBm

Communication Interface: 1 RS232 and 1 RJ45

RS232 Baud rate: 38400

RJ45:10/100M

traffic、logistics、manufacture industry
