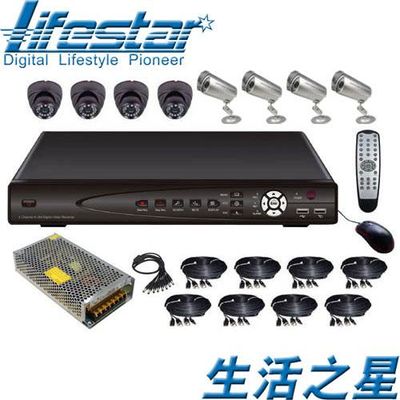

8ch real time cctv dvr kit with 600TVL ir outdoor camera (SH-8708V4ID4CD60)

1.H.264,VGA,BNC

2. Multi-language OSD

3.Support 2T SATA HDD,Email,Mobile phone,PTZ

4.Warranty:2Y

SH-8704V4CD42 1.1PCS SH-8704V:

a. 4CH DVR, Compression format:H.264,With VGA output,BNC 4CH In/1CH Out,1xUSB Mouse,1x IR Remote Controller

b. LCD Display:15" color LCD, 1024x768, 600:1, view angle:160u00b0, 4:3, CCFL

c. Display Frame Rate:PAL:704*576;NTSC:704*480

d. Record Frame Rate:NTSC : 30/704x480; 60/704x240; 120/352x240;

PAL : 25/704x576; 50/704x288; 100/352x288

e. Supports USB2.0 mouse, remote controller, operating;support 1PCS up to 2T SATA HDD;Support Email alarm;Mobile phone surveillance (Win CE/Symbian/iPhone/Blackberry);Support PTZ Control;

f. Network:1 RJ-45 10/100Mbps Ethernet connector

g. DVR can be connected to PC monitor,TV set and LCD Monitor.

h. Support Multi-language OSD

i. Audio: 4CH In /1CH Out



2.4PCS SH-ICD42(1/3" Sony CCD,420TVL,36 pcs 5mm IR-LED,6 mm Lens,IR Distance 30M)



3.4PCS 12V/1A power adaptor for CCD cameras.



4.4PCS 20M 2 in 1 (Power+Video) extension cable with BNC connector.



5.Weight : 12.5Kg



































SH-8704V4CD42L 2.4PCS SH-ICD42L(1/4" Sharp CCD,420TVL,36 pcs 5mm IR-LED,6 mm Lens,IR Distance 30M)

SH-8704V4CD60 2.4PCS SH-ICD60(1/3" Sony CCD,600TVL,36 pcs 5mm IR-LED,6 mm Lens,IR Distance 30M)

Specification



SH-8708V4ID4CD42 1.1PCS SH-8708V:

a. 8CH DVR, Compression format:H.264,With VGA output,BNC 8CH In/1CH Out,1xUSB Mouse,1x IR Remote Controller

b. 15" color LCD, 1024x768, 450:1,, view angle:160u00b0, 4:3, CCFL

c. Display Frame Rate:PAL:704*576;NTSC:704*480

d. Record Frame Rate:NTSC : 60/704x480; 120/704x240; 240/352x240;

PAL : 50/704x576; 100/704x288; 200/352x288

e. Supports USB2.0 mouse, remote controller, operating;support 1PCS up to 2T SATA HDD;Support Email alarm;Mobile phone surveillance (Win CE/Symbian/iPhone/Blackberry);Support PTZ Control;

f. Network:1 RJ-45 10/100Mbps Ethernet connector

j. DVR can be connected to PC monitor,TV set and LCD Monitor.

h. Support Multi-language OSD

i. Audio: 8CH In /1CH Out



2.4PCS SH-DID42(1/3" Sony CCD,420TVL,Vandalproof IR Dome,24 pcs 5mm IR-LED,3.6 mm Lens,IR Distance 20M)

4PCS SH-ICD42(1/3" Sony CCD,420TVL,36 pcs 5mm IR-LED,6 mm Lens,IR Distance 30M)



3.1PCS 12V/10A Power adaptor with 1PCS 1-in and 8-output cable for CCD cameras



4.8PCS 20M 2 in 1 (Power+Video) extension cable with BNC connector.



5.Weight :18.0Kg







































SH-8708V4ID4CD42L 2.4PCS SH-DID42L(1/4" Sharp CCD,420TVL,Vandalproof IR Dome,24 pcs 5mm IR-LED,3.6 mm Lens,IR Distance 20M)

4PCS SH-ICD42L(1/4" Sharp CCD,420TVL,36 pcs 5mm IR-LED,6 mm Lens,IR Distance 30M)

SH-8708V4ID4CD60 2.4PCS SH-DID60(1/3" Sony CCD,600TVL,Vandalproof IR Dome,24 pcs 5mm IR-LED,3.6 mm Lens,IR Distance 20M)

4PCS SH-ICD60(1/3" Sony CCD,600TVL,36 pcs 5mm IR-LED,6 mm Lens,IR Distance 30M)
