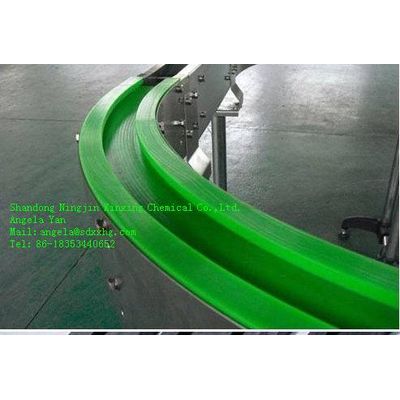

Wear-resisting UHMWPE Chain Guide Track Rail

Wear-resisting UHMWPE Chain Guide Track Rail



UHMWPE Chain Guide Track Rail:

UHMW-PE track rails is one of our new products, it has all the advantages of UHMW-PE, and its good condition made UHMW-PE track in conveyor track, protective curve track, ect. And we have developed many types UHMW-PE track , all available in several grades of UHMW plastic. UHMW chain guides extend chain life, reduce noise and friction. You can order them in standard sizes, or have a custom order.

The canning, packing and bottling industries often utilize our conveyor components for their ease of use, compatibility with other European suppliers, resistance to abrasion and low-noise properties. Machined tracks offer a convenient and easy way to guide side flexing chain around a corner. Made from Virgin UHMWPE they have a low coefficient of friction, silent operation and permit high speed lines.

Channel Style, Raised Track, Channel with a Raised Track, Mounting Channel

Chain guides are available in the channel style, raised track, and as a channel with a raised track. These chain guides are also available as inserts for mounting channels. The channels are available as galvanized or stainless steel. A mounting channel is welded or bolted into place and allows the UHMW to expand and contract without buckling.

Chain Guides Available in Several Grades of UHMW

All of the standard chain guides are available in several grades of UHMW: black repro - for lower cost; oil-filled UHMW for higher speed; green repro which matches the European guides; static-dissipative for conduction purposes; and HT for high temperatures up to 275 degrees.



XINXING CNC machined UHMWPE parts:UHMWPE material has many advantage to make it to be the ideal material as different Industry elements and equipments . Our CNC machine can make drillings, do chamfers, and do other processing under the control of computer.Our professional workers can process the UHMWPE sheet and rod into different shape as customer special request. If you have special parts troubled you, please feel free to contact us. Your approval is our greatest satisfaction!



CNC machined UHMWPE products:

UHMWPE wear strips

wearable UHMWPE gasket Simple big size gear Sleeve pipe UHMWPE guide rail UHMWPE block

all shape UHMWPE CNC machined parts



For Engineer plastics, XINXING is your best choice!



Our Company Introduction:

Shandong Ningjin Xinxing Chemical Co.,Ltd. is the leading professional Engineering Plastic products manufacture in China which specialized in producing UHMWPE and HDPE products according to the requirement from customers. XINXING has been specializing in this area since 1995, and the products are selling in more than 30 countries and area, such as North America, Europe and Southeast Asia and so on.

In the recent years,XINXING become the one of the largest UHMWPE Products manufacture in the world.



Our Products Range:

UHMWPE sheet, UHMWPE board,, UHMWPE liner plate, UHMWPE Marine Fender Pad, UHMWPE Machine parts, UHMWPE outrigger pad, UHMWPE dock bumper, UHMWPE rod,UHMW-PE Strips, HDPE sheet, HDPE machine parts, PP sheet, PVC sheet, HDPE extruded sheet, PE100 PE300 PE500 PE1000 PE2000 sheet, polyethylene sheet, plastic sheet, UHMWPE Chain Guides, polyethylene double color sheet, UHMWPE Dewatering component, UHMWPE chute bin liner and other Engineering plastic products.



Our Products Type :

PE 300,PE 500 ,PE 1000,PE 2000

UHMWPE 3million----9million molecule weight

High Density Polyethylene

Different shape and size is also available



Our Sheet Standard Sizes:

Length(mm)Width(mm)Thickness(mm)

200010006-300

300015006-300

470012006-300

500013006-300

450020006-300

305012206-100

Any small size need us to cut , we can satisfy your special need .



Our Products Color:

Black,Blue,Green,White,Yellow,Red,Orange or other customer color according to your requirements



Our Machine Character:



Our company adopted the most advanced Oriented type pressing machine,the pressure can be up to 1500t/M2, The pressure is ten times of normal pressing machine

Brief Specification:

high-wear & chemical resistant

superior impact resistant

self-lubricating

Non-Toxic



UHMWPE Advantages & Key Features:

Ultra High Molecular Weight (UHMW) Polyethylene is often referred to as the world toughest polymer, which is an optimum material instead of rubber, metal and wood. It is lighter and has lower coefficient of friction than rubber. UHMW-PE products are easier to be fixed and maintained so as to reduce the cost, and especially resistant to the corrosion of water in the sea and ocean.

TUHMWPE Advantages & Key Features:

--Highest abrasion resistance of any polymer, 6 times more wear resistant than steel

--Anti-Weather & Anti-Aging

--Self-lubricating, Very low coefficient of friction

--Excellent chemical & corrosion resistant

--superior impact resistant, Noise- absorption, Vibration-absorption

--Temperature range: -260u00b0C~ +80u00b0C; Very high resistance to cold,doesn't become fragile even under -180u00b0C

--High tensile Strength

--Non-Toxic and smell

--low in water absorption

--No adhesion

Specification:

Place of Origin:Shandong China (Mainland)

Brand Name:XINXING

Material : UHMWPE

Thickness : 6-300MM

Size : as you required

Standard color ; white/natural/blue/green/black/yellow/red/orange(other color is available )

Inspection : GB/T 19001-2008 ; ISO 9001:2008

Breaking elongation: >300%

Thickness tolerance : +2 -1 (smaller made according to your requirements)

shape : sheet/board/pad/panel/roll

Density : 0.93-0.97

Ultimate strength : 45MPa

Friction Coefficient : 0.12-0.15

Impact strength : 131Mj/mm2

Abrasion : 80, steel = 100

Application:

--Transportation machinery: Guide rail, convey belt, convey device slide block seat, fixing board, product flow line timing star wheel.

--Food processing machinery: With its performance of high wear resistance, anti-impact resistance, inadhesion resistance, non-toxic and clean property, UHMWPE material can be used in planet wheel, bottle convey counting bolt, filler bearing, bottle holder parts, washer guide bolts, air cylinder, gear, roller cone, chain wheel handle, which is easy-cleaning, long-enduring, and anti-mildew.

--Paper making machinery: With its performance of high wear resistance and good self-lubrication, UHMWPE material can be used in water suction tank cover, skew guide wheels,scrapper , bearing, nozzle, filter, oil tank, friction bar, felt cleaner.

--Textile machinery: With its performance of high-wear resistance, anti-impact and good self-lubrication, UHMWPE material can be used in scutcher, shock absorber shield, contactor, crankshaft connecting rod, picker stick, skew rod shaft sleeve, swing rear beam.

--Construction machinery/agriculture machinery: Bulldozer blade lining. Dumper ripper lining, tractor plow inner lining.

--Chemical machinery: Valve, pump, washer, filter, gear, nuts, seal rings, nozzle, plug, shaft sleeve, thread pipe.

--Port machinery/ship machinery: Ship parts, suspension bridge side roller, friction block.

Ordinary machinery: All types of gear, bushing, liner, sliding plate, clutch, guiding unit, brake, hinge, flexible coupler, roller, bearing wheel, fastening unit, platform sliding unit.

--Dyeing decor: Dip dyeing machine bearing, scrapper, sliding plate, lining washer, seal, framing guide disc,

--Culture and sport products: Snow dip liner, powered sledge, skating rink paver, ice field protection frame.

--Healthcare products: Shape righting surgery, artificial joint, artificial limb.

--Other: Cooling machine, nuclear power plant shield, electric galvanized parts, and ultra-low temperature machine parts.Mostly using of its high-wear resistance, high anti-impact resistance, anti-cold resistance, self-lubrication.

Why Choose Us:

20 years' professional manufacturing experience with own factory.

Virgin 100% material produced, recycle material available, high quality with good surface and color make ensured

GB/T 19001-2008 ; ISO 9001:2008 certification.

Competitive price, In stock, Fast delivery, and Excellent service.

OEM available. Special character is available :According to different requirements with different application, color, size, shape and special specifications can be customized, such as anti-UV, anti-static and so on.



Any questions, please feel free to contact us.



Best regards

Angela Yan



Shandong Ningjin Xinxing Chemical Co.,Ltd

Tel:u00a0u00a086-18353440652

Fax:u00a0u00a086-534-7074626

Mail: angela@sdxxhg.com

angela_yan1215@yahoo.com

Trade Manager: cn1500064823

Skype: angela_yan1215

Web: http://www.sdxxhg.com

http://sdxinxingpesheet.en.alibaba.com
