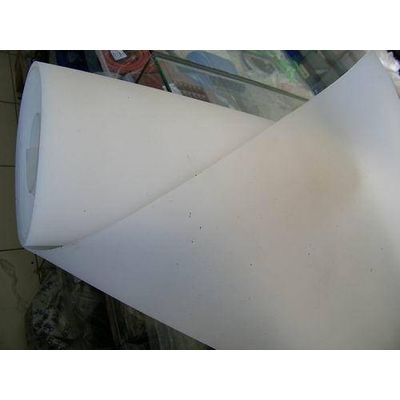

Selling Well High Quality Silicone rubber sheet/ silicone sheet

1.Silicone rubber sheet /silicone sheet

2.tensile strength

3.hardness15-80 shore A

4.Temperature-60~+260

5.Elongation760

Silicone rubber sheet/ silicone sheet Specifications of silicone rubber sheet:



Material: 100% Virgin Silicone Rubber



Surface: Smooth/Smooth, Smooth/Fabric Impression

Insertion: Accept to insert 1 PLY fabric in the middle

Tensile Strength: 7-12Mpa

Temperature : -60u00b0 C~+260u00b0 C



Hardness: 15, 20, 30, 40, 50, 60, 70, 80+/-5Shore A

Elongation: 330%-760%

Density: 1.25-1.30g/cm3

Tear Strength: 26-42N/mm

Thickness: 0.1-30mm

Width: 0.5-3.8m

Length: 5- 20m

Grade: Industrial Grade, Food Grade

Standard size: 1-8mm x 1m x 10m, 1-8mm x 1.2m x 10m, 10-30mm x 1m x 1m, 10-30mm x 1.2m x 1.2m etc.

Rubber Type including:



Natural rubber / SBR, Neoprene, NBR, EPDM, Butyl, Sillicon, Viton.



Colour any colour per your specific requirement. (black, green, red, white, grey, or others).

Insertion rubber sheeting with one or two / multiple plies are also available special purpose rubber sheet available on customize basis.







Characteristic:

Natural Rubber Sheet: High flexibility, good comprehensive physical mechanic performance.

SBR Rubber Sheet: Better wear-resistant and anti-aging function than NR, low prices.

Neoprene Rubber Sheet: Good climate resistant, ozone proof, hot resistance and chemical resistant.

NBR Rubber Sheet: Good oil-resistant, wear-resistant and anti-aging.

EPDM Rubber Sheet: Good anti-aging, ozone proof, polar liquid resistant, good electric performance, lightest



rubber.

Butyl Rubber Sheet: Low permeability, good anti-aging.

Sillicon Rubber Sheet: Excellent oil and fats resistance and for high temperatureup to 260. High resistant one can reach to 250-270 C.

Viton Rubber Sheet: For high temperature up to 300 C.

Packing by plastice film or weaver bags( P. P bags), See below photo:

Polymers NR SBR NBR Neoprene EPDM Butyl Silicon Viton

Hardness Range (Shore A) 40-85 45-85 40-85 50-80 40-85 50-80 40-75 70-80

Tense Strength (mpa) 3-20 2-10 3-20 3-10 3-15 3-8 6-10 6-8

(PSI) (aprox.) 435-2900 290-1450 435-2900 435-1450 435-2175 435-1160 870-1450 870-1160

Elongation (%) 200-650 200-450 200-500 200-500 200-500 200-500 200-700 100

Specific Gravity(g/cc) 1.1-1.6 1.4-1.7 1.1-1.6 1.3-1.7 1.4-1.6 1.35 1.2-1.4 1.9

Temperature range -75~90 -60~100 -50~120 -50~120 -60~150 -60~150 -120~260 -50~300
