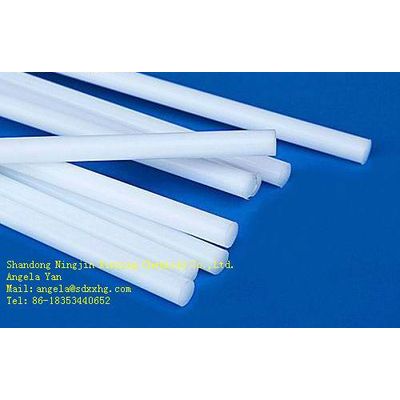

High-wear resistant and anti-UV UHMWPE rod for engineering

High-wear resistant and anti-UV UHMWPE rod for engineering



Our UHMWPE Rod size :

DIA 20, DIA 30,DIA 50,DIA 80,DIA 100,DIA 150 and other size .



Our UHMWPE Rod Performance:

Safety and environmental protection, non-toxic tasteless, fire retardant, waterproof, anti-corrosion, noise insulation, heat insulation, stable physical properties, anti-aging, life long, no joint.



XINXING can provide various UHMWPE & HDPE products with the good quality, we believe we can meet you requirements perfectly.

For Engineer plastics, XINXING is your best choice!



Our Company Introduction:

Shandong Ningjin Xinxing Chemical Co.,Ltd. is the leading professional Engineering Plastic products manufacture in China which specialized in producing UHMWPE and HDPE products according to the requirement from customers. XINXING has been specializing in this area since 1995, and the products are selling in more than 30 countries and area, such as North America, Europe and Southeast Asia and so on.

In the recent years,XINXING become the one of the largest UHMWPE Products manufacture in the world.



Our Products Range:

UHMWPE Sheet,UHMWPE rod,UHMW-PE liner,UHMW-PE Strips,UHMWPE Filter Plate,UHMWPE Marine fender, UHMW-PE parts, UHMWPE pad, HDPE Sheet, HDPE bar, HDPE parts, PP Sheet, PVC sheet and other Engineering plastic products.



Our Products Type:

PE 300,PE 500 ,PE 1000,PE 2000

UHMWPE 3million----9million molecule weight

High Density Polyethylene

Different shape and size is also available



Our Sheet Standard Sizes:

Length(mm)Width(mm)Thickness(mm)

200010006-300

300015006-300

470012006-300

500013006-300

450020006-300

305012206-100

Any small size need us to cut , we can satisfy your special need .



Our Products Color:

Black,Blue,Green,White,Yellow,Red,Orange or other customer color according to your requirements



Our Machine Character:



Our company adopted the most advanced Oriented type pressing machine,the pressure can be up to 1500t/M2, The pressure is ten times of normal pressing machine.The most important is that we have guide post which make the pressing machine rise steadily and the sheet can be strengthened evenly and smoothly.

This processing method is called pressure molding means .Its main character is it will not affected by the molecule weight of UHMWPE.Even the highest molecule weight of UHMWPE can be reprocessed by our machine.

UHMWPE Advantages & Key Features:

Ultra High Molecular Weight (UHMW) Polyethylene is often referred to as the world toughest polymer, which is an optimum material instead of rubber, metal and wood. It is lighter and has lower coefficient of friction than rubber. UHMW-PE products are easier to be fixed and maintained so as to reduce the cost, and especially resistant to the corrosion of water in the sea and ocean.

The following character also make the UHMW-PE products become most popular in the world.

--Highest abrasion resistance of any polymer, 6 times more wear resistant than steel

--Anti-Weather & Anti-Aging

--Self-lubricating, Very low coefficient of friction

--Excellent chemical & corrosion resistant

--superior impact resistant, Noise- absorption, Vibration-absorption

--Temperature range: -260u00b0C~ +80u00b0C; Very high resistance to cold,doesn't become fragile even under -180u00b0C

--High tensile Strength

--Non-Toxic and smell

--UV resistance

--Flame Retardant; Relatively low in water absorption

--Excellent electrical properties

--Good performance in resisting environment stress crack, 200 times of ordinary PE

--No adhesion

--Light weight and easier to handle and fix

--Cost efficient; Resulting in low energy consumption

--Does not rot, split or crack; 100% recyclable

--Great liner material for industrial material handling applications

--Easy Reprocessed

Specification:

Place of Origin:Shandong China (Mainland)

Brand Name:XINXING

Material : UHMWPE, PE 300,PE 500 ,PE 1000,PE 2000

Rod standard size : Diameter from 20mm to 450mm

Standard color: blue/green/black/yellow/red /white(other color is also available )

Inspection ; GB/T 19001-2008 ; ISO 9001:2008

Molecular weight : 3~9 million

Thickness tolerance : +2 -(1-0)

Water absorption : <0.01

Density : 0.94-0.98

Ultimate strength : 45MPa

Breaking Elongation ; 350%

Friction Coefficient ; 0.12-0.15

Impact strength ; 131Mj/mm2

Abrasion ; 80, steel = 100

Our UHMWPE Rod Applications:

--Chain and belt guides

--Sliding and power transmission components

--Chain sprockets and gear wheels

--Sliding components and bearings

--Track and guide rollers



Our Products Applications:

--Highly abrasion-resistance board : store/bucket interior lining,port machinery, mining machinery, building machinery,chute, and hopper.

--Pure ultra-high sheet : transport machinery,food, packing, paper making, environmental protection, and ceramics.

--Anti-static electric board : electrostatic protecting positions for mining in the pit, wharf,and foods processing.

--Flaming retarding board : mining in the pit, mainly used in easily self-inflammation parts, such as coal storehouse.

--Color board : packaging, decorative material, board fender.

--Double-color board: being component to check any wear and tear easily.

--Anti-UV board : storehouse or funnel in the open air, board fender.

--Micro-hole board : filter-board, anti-skid plate.

--Medical : UHMW-PE is the only plastic approved for medical implants. Global Polymer Industries has medical grade UHMW-PE available for molding various orthopedic joints such as hips, knees, and shoulders. UHMW-PE's unique self-lubricating properties make it ideal for many medical applications.

--Owing to its excellent abrasion resistance, impact resistance,self-lubricating, it is suitable for making many types of machinery parts, such as rollers, shaft bushes, nozzles, mixing blade and other products.

Why Choose Us:

20 years' professional manufacturing experience with own factory.

Virgin 100% material produced, recycle material available, high quality with good surface and color make ensured

GB/T 19001-2008 ; ISO 9001:2008 certification.

Competitive price, In stock, Fast delivery, and Excellent service.

OEM available. Special character is available :According to different requirements with different application, color, size, shape and special specifications can be customized, such as anti-UV, anti-static and so on.
