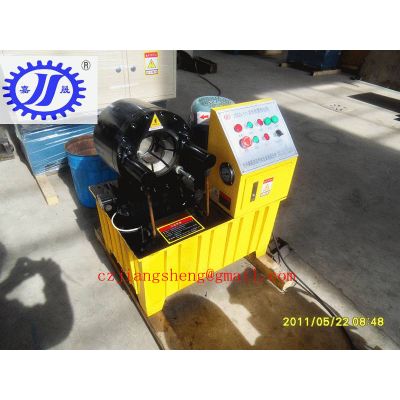

crimper hose JSSG51-III

Characters:Operating with touch screen can get the accurate location. The machine's body is too thin, the gear opening is big. It is much easier for tube with double elbows to get through. It is suitable for industries such as construction machinery, coal mining, ship construction, cables for car. Especially to press air conditioner pipe with complex shape, unique shaped tube and high-pressure fuel pipe with elbow, flexible shaft or cars' cable.

Max Pressing pipes' inner diameter:76mm

Max Pressing elbows' length:320 mm

Voltage:380V

Power:7.5KW

Size: length *Width*Height: 1570*740*1400 mm

The clamping force can reach 10980 KN. We have the new design and choose the hydraulic valve very carefully to make sure the work would be done high efficiently and reliably. The swallow tail moulds make sure it is easy to press varies kinds of elbows and flange with special shapes. The design of low barycenter can reduce the operator's labor intensity. The type of machine especially suits the shipping industry, oil drilling, heavy industry, large-scale mine. It is easy to operate because there are two ways for users to choose, by feet or by hand. The Max Press Tubes can be

JSSG-51-Rubber

Tube Locking and Pressing Machine JSSG-51 Rubber Tube

Locking and Pressing Machine

(With a hose skinned bodies) JSSG-51 Rubber Tube

Locking and Pressing Machine

Voltage 380V/220V 380V/220V 380V/220V

Deduction pressure 280T 280T 280T

Pressure System 25MPaAdjustable 25MPaAdjustable 25MPaAdjustable

Dimension 1200(From top to bottom)*460(Before and after)*840(left and right)mm 1200(From top to bottom)*460(Before and after)*840(left and right)mm 740(From top to bottom)*450(Before and after)*650(left and right)mm,
