NFB magnet strong products

NdFeB or Neo magnets, are the most widely-used type of rare earth magnet. It is the strongest type of permanent magnet made from an alloy of Neodymium, Iron, and Boron with the Nd2Fe14B tetragonal crystalline structure. It has replaced other types of magnets in many applications in modern products that require strong permanent magnets, such as motors in cordless tools, hard disk drives, and magnetic fasteners.

1.Density - 7.4-7.6 g/ cm3

2.Manufacturing process -sintering (most common), injection molding, and compression bonding.

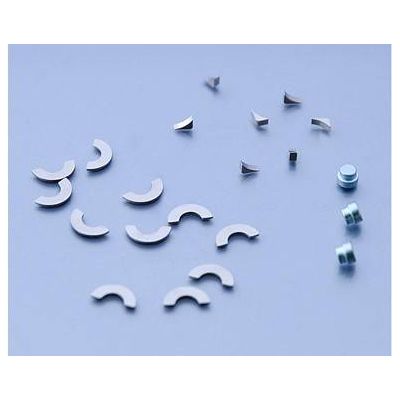

3.Various shapes - blocks, bars, discs, rings, arc, segments, sectors, fan shape, cylinders, etc.

4.Prone to oxidation, plating is recommended ( Ni-CU-Ni, Zn,Au,Epoxy, etc)

Physical Properties of NdFeB Magnet

Density(g/cm3)7.3-7.5

Curie Temperature ()320

Max. Operating Temperature ()220

Relative Permeability1.05

Flexural Strength (N/nm2)250

Compressive Strength (N/nm2)1100

Tensile Strength (N/nm2)75

Hardness (Hv)550-650

Temperature Coefficient of Br (%/)-0.09~-0.12

Temperature Coefficient of Hcj (%/)-0.50~-0.65

used for package

We can provide magnets of any size and almost any grade according to the specifications you provide. If you are in need of customized magnets, please mail to xu_frank@126.com for more information. We'll get back to you within 1 to 2 business days.
