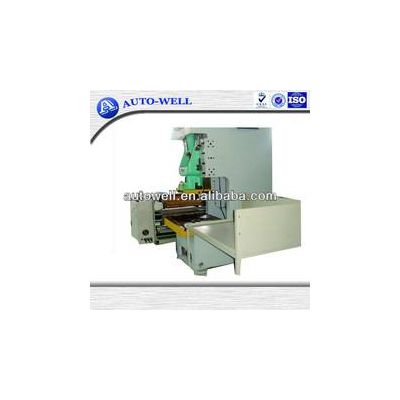

kitchen takeawy aluminum foil plate making machine

Type:Other

Condition:New

Application:Food, Machinery & Hardware

Packaging Type:Case

Packaging Material:Wood

Automatic Grade:Automatic

Driven Type:Pneumatic

Voltage:380v

Power:12kw

Place of Origin:Jiangsu, China (Mainland)

Brand Name:ATW

Model Number:45T

Weight:4T

Dimension(L*W*H):4X2X4

Certification:ISO9001:200, ISO 9001:2008, CE certificate

After-sales Service Provided:Engineers available to service machinery overseas

Material:Aluminum foil

Production capacity:20000-30000pcs/day

Production period:50days

Color:Optional

Size:1550*1150*2500mm

Volume:7.3cbm

Weight:4000KG

Slide block stroke:100-260mm

Shipping port:SHANGHAI PORT

Length of warranty:1 year

easy operating,

good quality,(CE&ISO)

high speed

durable service,

stable,

long life

ATW aluminum foil food container making machine :

Easy operating

High quality

Good after sales service















Our advantage:



Easy operating



High quality



Good after sales service











More details:



Production capacity: 40-80times/min



Production period:45DAYS



Color:AS CUTOMER'S REQUIRMENT



Size:5X2X4M



Volume:18m3



Weight:3T



Shipping port:SHANGHAI PORT



Length of warranty:2 YEAR





SPECIFIC PRODUCT CHARACTER:



aluminum foil food container making machine is widely used for manufacturing aluminum foil food container .



- Speed can be adjusted.



-Complete with PLC Control Panel Board







1)Specification of Auto-Lubricated Feeder:



Max. Material Roll Dia.: 650mm



Max. Material Roll Width: 650mm



Feeding Speed:10-30M/min



Feeding Length: 30-900mm



Feeding Tolerance: +/-0.3mm



Capacity: 1Kw







2)Specification of 45T Pneumatic Punch:



Pressure: 400KN



Hole Size of Collecting Table: 300*300mm



Production Output: 40-80times/min



Board Thickness of Collecting Table: 50mm



Max. Height of Mould: 290mm



Slide Board Size: 220*400mm







3)Aluminum foil container mould



4)aluminum foil scrap collector



5)Aluminum Foil Containers Stacker



6)Scrap baler

Payment term



1) TT :30% advance payment ,70% before ship or against the copy of BL.



2) LC: 30% advance payment ,balance pay by LC at sign.







More details:









Delivery time





Packaging





Length





Weight





Height





Gross Weight





Net Weight





Volume









45days





Wooden case





5m





2m





4m





4t





3t





18m3

Company and production Advantages



Our own factory manufactures the aluminum foil related machine and provides the overall service



We concentrate on aluminum foil field several years. We have a body of engineers who have years of experience.

Zhangjiagang Auto-well Automation Equipment Co., Ltd. is professional researching and developing manufacturer which is specialized in the designing and making the aluminum foil container mould , aluminum foil container machine,aluminum foil rewinding machine, paper cup forming machine, paper bowl forming machine , aluminum coil composite panel machine,and yogurt lid die cutting machine.







Our products have been exported to Italy, Saudi Arabia, Bahrain, South Africa, Australia, Iran, Czech Republic, Syria, Dubai and so on more than 20 countries .
