carton folding glue machine

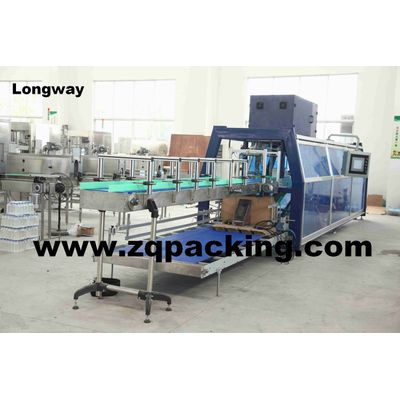

Longway carton folding glue machine
1.40case/minute-40case/minute
2.hot glue sticking
3.cardboard wrap around, stick by hot glu


Carton folding glue machine

Facility technology parameter

l Capacity:35-40carton/minute,stepless continuation adjustment

l Production efficiency: about 98%

l Card board enter method: sucker collect/pickup

l Single card glue consumption quantity:2-4gram

l Package type: base on 640ml bottle, as 3*4 package or 330ml bottle -4*6package type or

as client requirement.

l Applied bottle can outside size: diameter: Dia-60~90mm Height 120~280mm

l Machine outside size: L*W*H=11769*4200*2600(mm)

l Machine used air compressor air pressure: 0.4~0.6Mpa

l gas consumption :0.2NM3/min

l Total power: 19KW

l Machine weight: 6000kg

Reduction Box/gear choose Guangzhou Europe's shi---4set

3.End conveyor choose SEW reducer-2set



4.Frequency conveyor choose Danfoss Product-2set

5.Photoelectric,Sensor switch choose German "P+F" company products.

6.Matching America NORDSON series hot glue machine-1set

Hot glue facility adopt to Japan "NORDSON" products, melting and usage temperature 150-170

degree, carton Adhesive fasten ratio 100%,and can auto adjust according to temperature

change, if temperature cannot reach, it will auto stop.



7. Independent vacuum bump---German "ELmo Rietschle" VLT40 product--1set

8.Pneumatic part is German "FESTO" pneumatic unit and vacuum absorb board component,

solenoid valve.

9.Main electricity element choose France Schneider product.

10.Main spare parts transmission bearing shaft choose America "Rexnord "

company product or similar brand.
