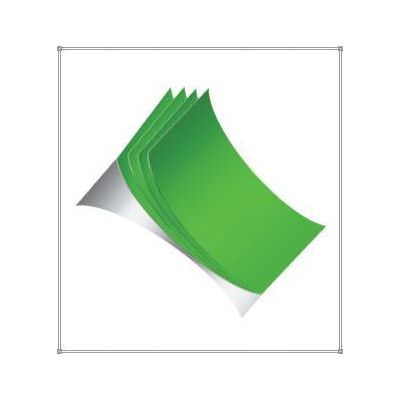

CTcP Plate /UV Plate

First Class Aluminum Substrate The first class aluminum base of Ronseinu2019s CTCP plate maintains an even surface, exact dimension and all kinds of physics and mechanical capabilities. Compound Halftone Frame and Close-grained Oxidation Layer The multi-layer compound halftone frame and close-grained oxidation layer on the surface ensures exact dot-reproduction and excellent endurance. Hydrophilic Managing SubstrateUV-CTcP plate adopt hydrophilic managed substrate to not only ensure the firm combination between sensitive layer and substrate but also improve the balance between water and ink so that it prevent from scum when machine idle and during printing. Excellent Coating ComponentUV-CTcP plate adopts excellent coating component to keep the plate well-proportioned coated, with high sensitive speed, fine dot-reproduction and long run length. These make Ronsein CTCP plate fit for top grade commercial printing and Newspaper printing.

Technical Data Thickness 0.15-0.30mm Sensitive Wavelength 400-430nm Photosensitivity 60-80 mj/cm2 Dot Reproduction 1%-99% at 200 lpi (2400dpi) Micro-line Reproduction 6-10um Run Length 50,000-80,000Actual run length may vary according to press, ink and paper condition. Plate Developing Condition Recommend Developer Ronsein developer or Fuji developer Developer Concentration powder to liquid =1:4 (automatic)powder to liquid =1:6 (manual) Developing Temperature 21-25 degree Celsius Developing Time 25-35s Plate Baking Condition Baking Temperature 230-250 degree Celsius Baking Time 4-8 min Run Length after Baking 150,000-250,000 Detailed Information Safe Light yellow Shelf Life 18 months under recommended storage conditions (10-30 degree Celsius, relative humidity: 40% - 70%, stacking height less than 1.5 meters) Package Available in all standard formats including bulk Packaging options: 0.15mm - 100 sheets per carton0.30mm - 50 sheets per carton
