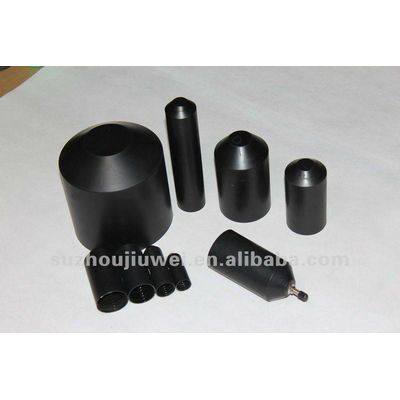

Heat Shrinkable Cable Caps/Heat shrink end cap

1.lSpiral adhesive coating insider of VFSM ; 2.Stealing ,waterproof ,UV fading Technical Data: Property Test Method Standard Operating temperature IEC 216 -55u00b0C~110u00b0C Tensile Strength ASTMD 638 >14MPa Ultimate elongation ASTMD 638 >400% Heat aging Ultimate elongation 150u00b0C/168hrs >300% Density ASTMD 792 1.05 Breakdown strength IEC 243 >15KV/mm Volume resistance IEC 93 >1014Ω.cm

Featured Products

Professional and Factory direct

Used Widely,Safe and reliable

Certification authority

Services Thoughtful

VFSM-12/4

Heat Shrinkable Cable End Caps 1.lSpiral adhesive coating insider of VFSM ; 2.Stealing ,waterproof ,UV fading Technical Data: Property Test Method Standard Operating temperature IEC 216 -55u00b0C~110u00b0C Tensile Strength ASTMD 638 >14MPa Ultimate elongation ASTMD 638 >400% Heat aging Ultimate elongation 150u00b0C/168hrs >300% Density ASTMD 792 1.05 Breakdown strength IEC 243 >15KV/mm Volume resistance IEC 93 >1014Ω.cm Specification unit(mm) Order Ref. Number As supplied After fully recovered Length Cable diameter Diam (min) A(u00b110%) Diam (max) Length (u00b110%) Width (u00b15%) VFSM-12/4 12 15 4 40 2.6 4-10 VFSM-14/5 14 18 5 45 2.2 5-12 VFSM-20/6 20 25 6 55 2.8 6-16 VFSM-25/8.5 25 30 8.5 68 2.8 10-20 VFSM-35/16 35 35 16 83 3.3 17-30 VFSM-40/16 40 35 16 90 3.3 18-32 VFSM-55/26 55 50 26 103 3.5 28-48 VFSM-75/36 75 55 36 120 4.0 45-68 VFSM-100/52 100 70 52 140 4.0 55-90 VFSM-120/60 120 70 60 150 4.0 65-110 VFSM-145/60 145 70 60 150 4.0 70-130 VFSM-160/82 160 70 80 150 4.2 90-150 VFSM-200/90 200 90 70 160 4.2 100-180 Lengthened End Cap VFSM-14/5 14 30 5 55 2.2 5-12 VFSM-40/15 40 40 15 90 3.3 18-34 VFSM-55/23 55 70 23 140 3.8 25-48 VFSM-62/23 62 70 23 140 3.8 25-55 VFSM-75/36 75 70 36 150 4.0 40-68 VFSM-75/36 75 70 36 170 4.2 45-68 VFSM-100/47 100 65 47 155 4.0 50-90 Our products include Cold power cable accessories; Heat shrinkable power cable accessories; Low voltage heat shrinkable casing; Highpressure heat shrinkable casing; The bus protection box; High and low voltage heat shrinkable belt; PVC contraction casing; PVC contractive casing; J series since the adhesive tape; Electrical tape; Continuous length mother row protective casing; Steel pipe anticorrosion with heat shrinkable materials; Prefabricated branch cable; Irradiation processing; Other related products; Yellow green heat shrinkable tube; Double-wall heat shrinkable tube; Environmental protection heat shrinkable tube. About us. Suzhou Jiuwei Electric Made Co., Ltd. is a company which is skilled in manufacturing cable accessories, electrical equipment and insulation tubes, etc. To face the growing needs of available and potential markets, we are insisting on extracting primary techniques and focusing on advanced technology R&D to provide
