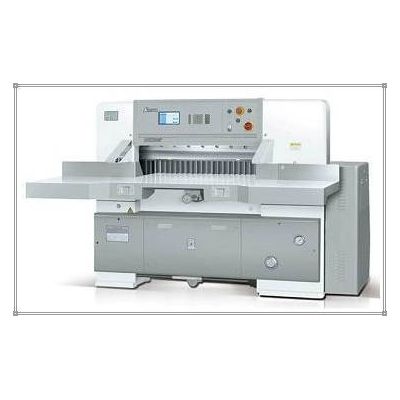

Computerized Paper Cutting Machine

Program Control paper cutter main electronic units are from German SIMENS, French TE, Japanese ORMON famous stability is very well. The workable is plated chromium. The sending paper mechanism adopts high rigidity double linear guides and high accurate roller ball lead screw to ensure the precision of sending paper. CT series machine worktable have double guide way structure Hydraulic pressing paper structure(with out flume) THK guide, thus it have high accuracy and have longer using period. ) with the pressure can be adjusted freely. Cutting adopts electro magnetic clutch transmission. The working platform equipped with air cell and chromate treatment. When operating to be an aircushion with ease of operation and saving labor. The site of the blade can be traced by light shot at the reamer with ease of observation. When non cutting material enter the blade accidentally. It will stop. Reaching the safety rule of the standard.

MODEL MC92PCM MC130PCM Cutting argment width 92cm 130cm Max.cutting length (Without auxiliary panel ) 12cm 13cm Max.cutting length 110cm 130cm Min.cutting length 2.5cm 3cm Fore-length of working table 65cm 73cm Height of working table 88cm 88cm Width of machine (side working table included) 218cm 263cm Total length of working table 216cm 260cm Cutting speed 40times/min 45times/min Max.pressur 3000N 4000N Main motor power 3kw 4kw Paper sending motor 0.55kw 0.55kw Air blower 0.55kw 0.75kw Gross weight 2500kg 4200kg Overall dimensions 240 u00d7 125 u00d7u00d7 175cm 280 u00d7 135 u00d7 175cm
